Upper Arm Replacement

Special Tools Required

• Ball joint thread protector, 10 mm 07AAF-SECA120
• Ball joint remover, 28 mm 07MAC-SL0A202

1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS )
2. Remove the front wheel
3. Remove the front damper/spring (see DAMPER/SPRING REMOVAL AND INSTALLATION )
4. Remove the cotter pin (A) from the upper arm ball joint, then remove the castle nut (B)
   NOTE: During installation, install the new cotter pin into the ball joint pin hole from the front to the rear of the vehicle, and bend its end as shown Check the ball joint pin hole direction before connecting the ball joint

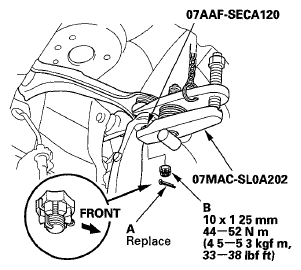

   Fig 1: Castle Nut And Cotter Pin With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Disconnect the upper arm ball joint from the knuckle using the ball joint thread protector and the ball joint remover (see BALL JOINT REMOVAL )
6. Remove the upper arm mounting bolts (A), then remove the upper arm (B)
   NOTE: Use new upper arm mounting bolts during reassembly

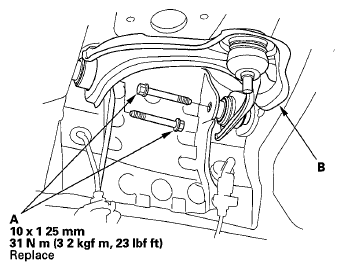

   Fig 2: Upper Arm Mounting Bolts And Upper Arm With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the upper arm in the reverse order of removal, and note these items
   • First install all of the components, and lightly tighten the bolts and the nuts, then raise the suspension to load it with the vehicle's weight before fully tightening it to the specified torque values Do not place the jack against the ball joint pin of the knuckle
   • Be careful not to damage the ball joint boot when connecting the knuckle
   • Before connecting the ball joint, degrease the threaded section and the tapered portion of the ball joint pin, the ball joint connecting hole, the threaded section, and the mating surfaces of the castle nut
   • Torque the castle nut to the lower torque specification, then tighten it only far enough to align the slot with the ball joint pin hole Do not align the castle nut by loosening it
   • Before installing the wheel, clean the mating surfaces of the brake disc and the inside of the wheel
8. Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT )
