Intermediate Shaft Installation

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Clean the areas where the driveshaft contacts the differential thoroughly with solvent, and dry them with compressed air
NOTE: Do not wash the rubber parts with solvent

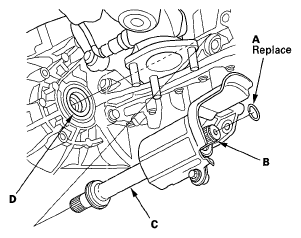

Install a new set ring (A) into the set ring groove (B) of the intermediate shaft (C)

Fig 1: Identifying Set Ring, Set Ring Groove, Intermediate Shaft And Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the intermediate shaft into the differential correctly
NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal (D)

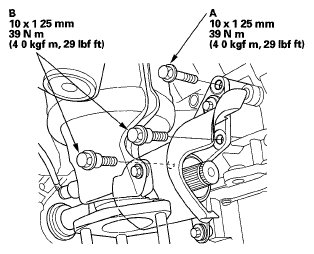

Install the flange bolt (A) and the two dowel bolts (B)

Fig 2: Flange Bolt And Dowel Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear WU-TWC bracket (A)

Fig 3: Rear WU-TWC Bracket With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the right front driveshaft (see FRONT DRIVESHAFT INSTALLATION )
Connect the CKP sensor connector (A), and install the sensor harness clamp bracket (B)

Fig 4: CKP Sensor Connector And Sensor Harness Clamp Bracket With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CKP sensor cover (A)

Fig 5: CKP Sensor Cover With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install exhaust pipe A
- Without SH-AWD (see EXHAUST PIPE AND MUFFLER REPLACEMENT )
- With SH-AWD (see EXHAUST PIPE AND MUFFLER REPLACEMENT )
Refill the transmission with the recommended transmission fluid
- Manual Transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
- Automatic Transmission (see ATF REPLACEMENT )
Check the wheel alignment, and adjust it if necessary (see WHEEL ALIGNMENT )
Test-drive the vehicle
