Tensioner Pulley Replacement

  1. Remove the drive belt (see DRIVE BELT INSPECTION ).
  2. Remove the pulley bolt (A), then remove the tensioner pulley (B).

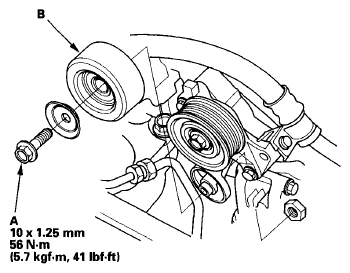

    Fig 1: Pulley Bolt And Tensioner Pulley With Torque Specifications
    G06265447Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the tensioner pulley in the reverse order of removal.
