HID Unit Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the combination light switch OFF
  2. Make sure the ignition switch is in LOCK (0) position, or the vehicle ignition in the OFF mode, then do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
  3. Remove the headlight assembly (see HEADLIGHT REPLACEMENT )
  4. Remove the three mounting screws and the HID unit (A)

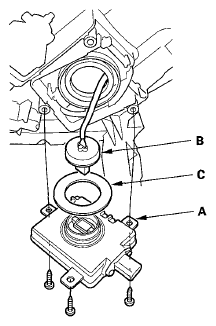

    Fig 1: Identifying HID Unit And Mounting Screws
    G05988936Courtesy of AMERICAN HONDA MOTOR CO., INC.

    The illustration shows the right side

  5. Disconnect the 4P connector (B) from the HID unit
  6. Inspect the gasket (C) for damage If damaged, replace it
  7. Install the HID unit in the reverse order of removal
  8. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
  9. After replacement, adjust the headlight (see HEADLIGHT ADJUSTMENT )
