Shift Lever Installation

  1. Install the shift lever assembly.
  2. Connect the shift lock solenoid connector (A) and park pin switch/A/T gear position indicator panel light connector (B).

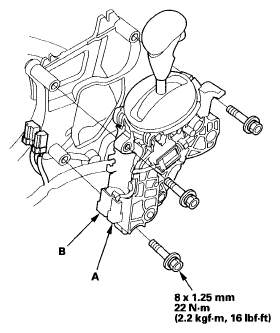

    Fig 1: Shift Lock Solenoid Connector And Park Pin Switch/A/T Gear Position Indicator Panel Light Connector With Torque Specifications
    G06265130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the shift cable on the shift lever, and adjust the cable (see step  5 on ).
