Front Seat Lumbar Support Replacement

SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service

1. Remove the driver's front seat (see FRONT SEAT REMOVAL/INSTALLATION )
2. Remove the seat-back panel (see step 3 on FRONT SEAT-BACK COVER REPLACEMENT )
3. Release the hook strips as needed, then turn over the seat-back (see step 4 on FRONT SEAT-BACK COVER REPLACEMENT )
4. Remove the cable band (A) fastening the lumbar support cable (B)
   Fig 1: Identifying Cable Band And Lumbar Support Cable

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

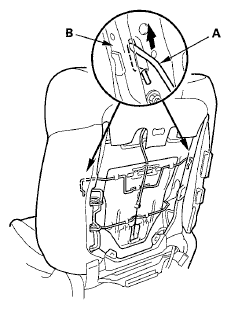

5. Remove the upper wire (A) from both seat-back side frames (B) inside the seat-back
   Fig 2: Removing Upper Wire From Both Seat-Back Side Frames

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Release the lower wires (A) from both active head restraint links (B) inside the seat-back
   Fig 3: Releasing Lower Wires From Both Active Head Restraint Links

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

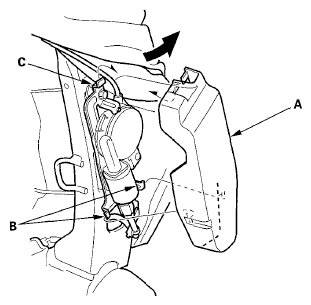

7. Remove the lumbar support motor cover (A)
   1. -1 Release the cover from the lower hooks (B)
   2. -2 Pull the cover upward to release it from the upper hook(C)
      Fig 4: Identifying Lumbar Support Motor Cover

      Courtesy of AMERICAN HONDA MOTOR CO., INC.

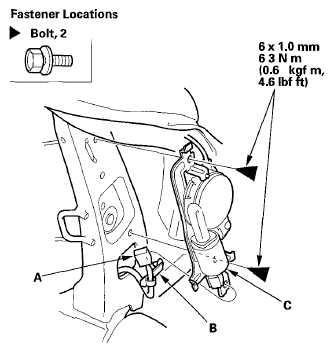

8. Disconnect the lumbar support motor connector (A), and detach the harness clip (B) Remove the bolts, then remove the lumbar support motor (C)
   Fig 5: Lumbar Support Motor Connector, Harness Clip And Lumbar Support Motor With Torque Specification

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install the lumbar support in the reverse order of removal, and note these items
   • Make sure the connector is plugged in properly
   • To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook strips
