The remaining engine oil life (A) is shown as a percentage in the multi-information display To see the current engine oil life, turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode then push and release the SEL/RESET button repeatedly until the engine oil life displays

Fig 1: Screen Display - Oil Life
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is ON (II) or the vehicle ignition in the ON mode and the remaining engine oil life is 6 % to 15 %, the remaining engine oil life and other scheduled maintenance item(s) needing service are displayed

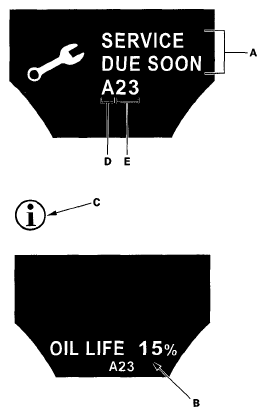

The maintenance system message "SERVICE DUE SOON" (A) also comes on To cancel the message, press the INFO button The display continues to show the remaining engine oil life (B) and the message indicator (C) until it is reset
- Complete list of maintenance main items (D) (see MAINTENANCE MAIN ITEMS )
- Complete list of maintenance sub items (E) (see MAINTENANCE SUB ITEMS )

  Fig 2: Screen Display - Service Due Soon
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is ON (II) or the vehicle ignition in the ON mode and the remaining engine oil life is 1 % to 5 %, the maintenance system message "SERVICE DUE NOW" is displayed along with the same maintenance item code(s) If the maintenance system message display is canceled, a "SERVICE" message appears

Fig 3: Screen Display - Service Due Now
Courtesy of AMERICAN HONDA MOTOR CO., INC.
When the ignition switch is ON (II) or the vehicle ignition in the ON mode and the remaining engine oil life is 0 %, the maintenance system message "SERVICE PAST DUE" is displayed along with the same maintenance item code(s)

Fig 4: Screen Display - Service Past Due
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the indicated maintenance is not done, the "SERVICE PAST DUE" message shows a negative mileage, for example "10," on the display If the negative mileage is between 0 and 9, the message is displayed for only a few seconds when the ignition switch is turned to ON (II), or press the engine start/stop button to select the ON mode The negative mileage (A) remains displayed after the vehicle is driven more than 10 miles (for USA models) or 10 km (for Canada models) after 0 % oil life is reached, and the display cannot be canceled This means the indicated maintenance item(s) should have been done more than 10 miles (or 10 km) ago

Fig 5: Screen Display - Service Past Due
Courtesy of AMERICAN HONDA MOTOR CO., INC.
