Electromagnetic Clutch System: Operation
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

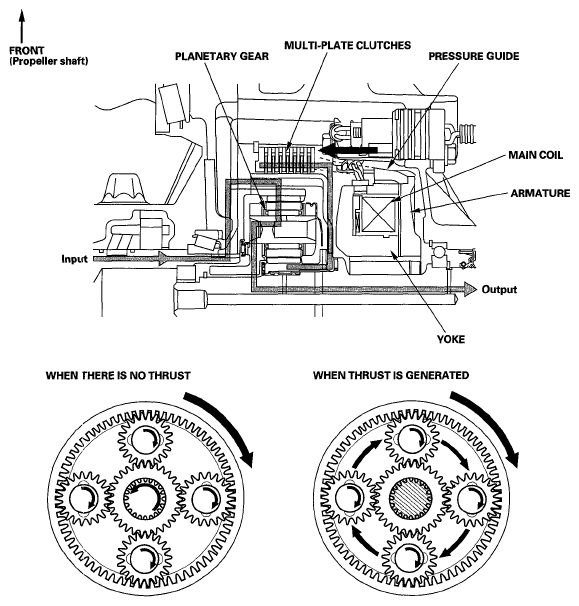

The SH-AWD control unit receives inputs from the PCM and the VSA modulator-control unit on the driving conditions via the CAN The SH-AWD control unit sends signals to the main coils, which engage the electromagnetic clutches that connect the planetary gear set This increases the torque applied to the rear wheels The amount of current sent to the clutch is continuously varied as driving conditions change
