DTC P0752: Shift Solenoid Valve A Stuck ON: Notes

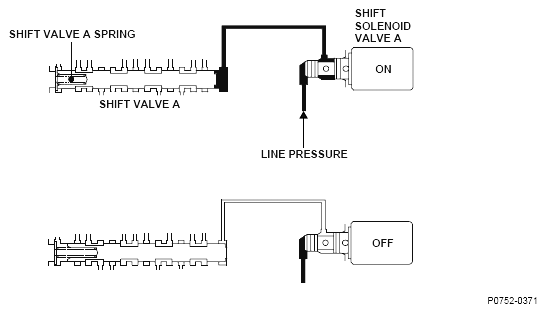

Fig 1: Shift Solenoid Valve A - Circuit Diagram

G04845643

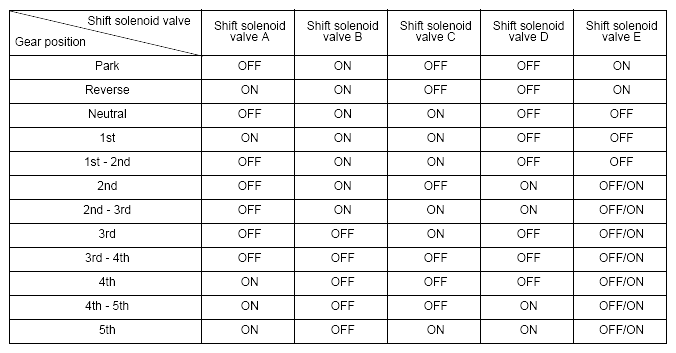

Fig 2: Shift Solenoid Valve Gear Position Chart

G04845644
