Under-hood Fuse/Relay Box

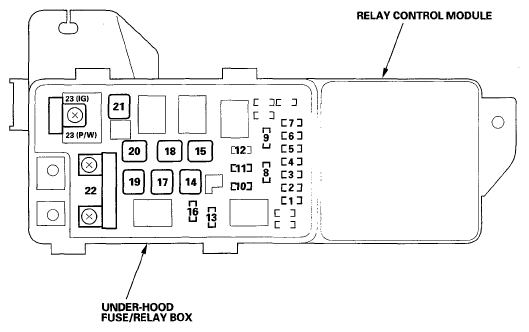

UNDER-HOOD FUSE/RELAY BOX REFERENCE CHART
| Fuse Number | Amps | Wire Color | Component(s) or Circuit(s) Protected |
|---|---|---|---|
| 1 | 15A | RED/YEL | Left headlight (low beam) |
| 2 | 30 A | Internal connection | Relay control module (with climate control) |
| 3 | 10A | WHT/YEL | Left headlight (high beam) |
| 4 | 15A | RED/BLK | Audio-HVAC display module light, A/T gear position console light, Center pocket light, Driving position memory switch, Front parking lights. Glove box light, Hazard warning switch light, Moonroof switch light, Navigation unit, Relay control module, Rear side marker lights, Seat heater switch light, Taillights, VSA OFF switch light |
| 5 | 10A | WHT/GRN | Right headlight (high beam) |
| 6 | 15A | RED/GRN | Right headlight (low beam) |
| 7 | 7.5 A | Internal connection | Relay control module |
| 8 | 15A | WHT/GRN | CKP sensor, CMP sensor B, ECM/PCM (2 wires), Injectors, PGM-FI main relay, Throttle actuator control module relay |
| 9 | 20 A | BLU/YEL | A/C condenser fan motor (via A/C condenser fan relay) |
| BLU/RED | A/C compressor clutch (via A/C compressor clutch relay) | ||
| 10 | 20 A | BLU/ORN | Fog lights (via front fog light relay), Fog light relay ('06-08 models) |
| 11 | 20 A | BLU/BLK | Radiator fan motor (via radiator fan relay) |
| 12 | - | - | Not used |
| 13 | 20 A | RED | Brake lights, ECM/PCM, High mount brake light, Ignition key light. Multiplex integrated control unit (MICU) |
| Internal connection | Horns (via relay control module) | ||
| 14 | 40 A | BLK/YEL | Noise condenser, Rear window defogger (via rear window defogger relay) |
| 15 | 40 A | YEL | No. 5 through No. 9 fuses in the under-dash fuse/relay box |
| Internal connection | No. 7 fuse in the under-hood fuse/relay box | ||
| 16 | 15A | WHT/BLK | Turn signal/hazard relay |
| 17 | 30 A | WHT/RED | VSA modulator-control unit (MR +B) |
| 18 | 40 A | WHT | VSA modulator-control unit (+B FSR) |
| 19 | 40 A | BLK/RED | No. 1 through No. 4 fuses in the under-dash fuse/relay box |
| 20 | 40 A | BLU | No. 13 through No. 17 fuses in the under-dash fuse/relay box |
| 21 | 40 A | WHT/BLU | Blower motor (via blower motor relay) |
| 22 | 100 A | - | Battery, Power distribution |
| 23 | 50 A (IG) | WHT | Ignition switch (BAT) |
| 50A(P/W) | WHT/BLU | Power window relay. No. 24 through No. 28 fuses in the under-dash fuse/relay box |
