Steering Linkage and Gearbox Inspection

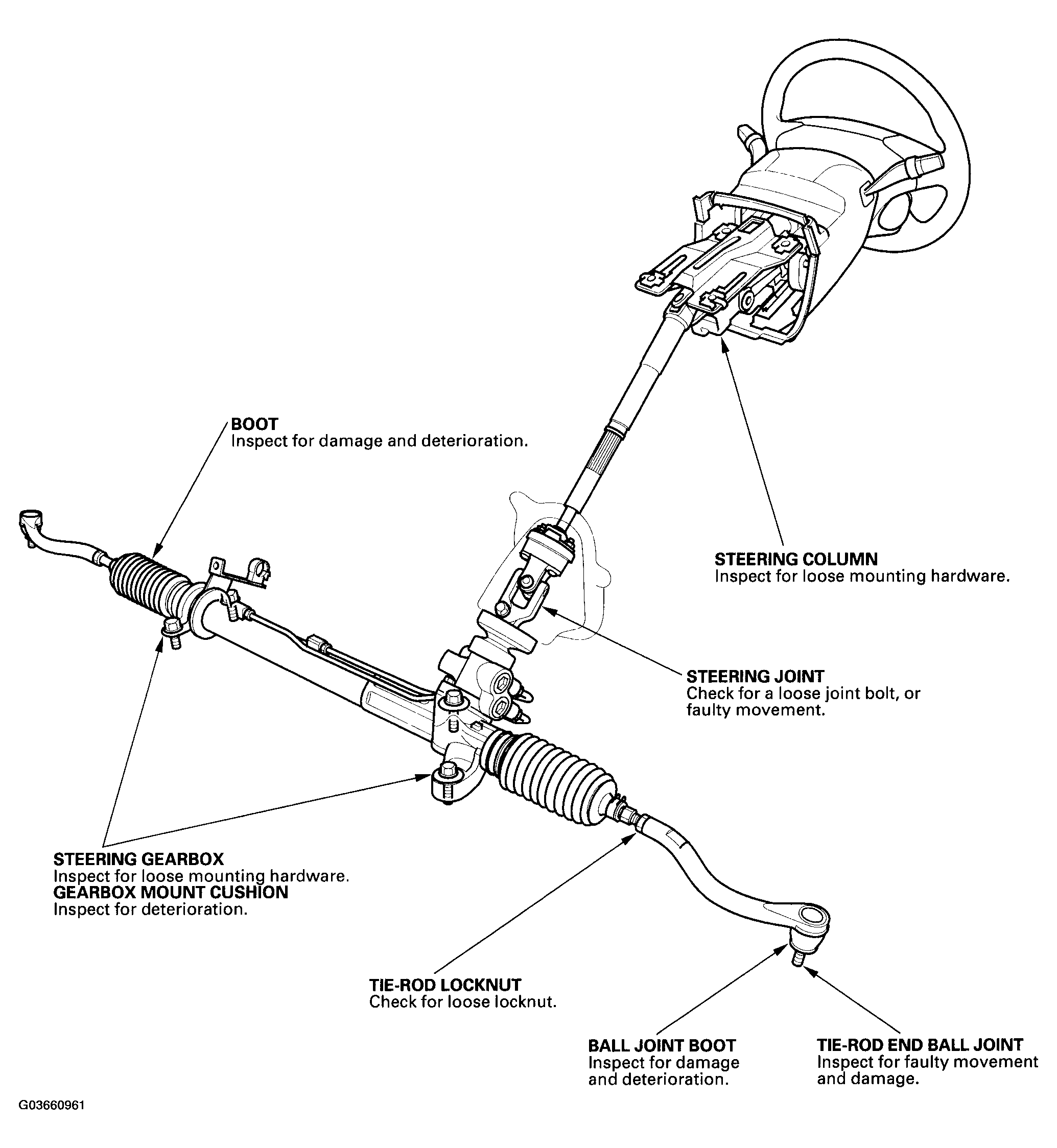

Fig 1: Inspecting Steering Linkage And Gearbox

G03660961

Courtesy of AMERICAN HONDA MOTOR CO., INC.
