Hazard Warning Switch Connector End View

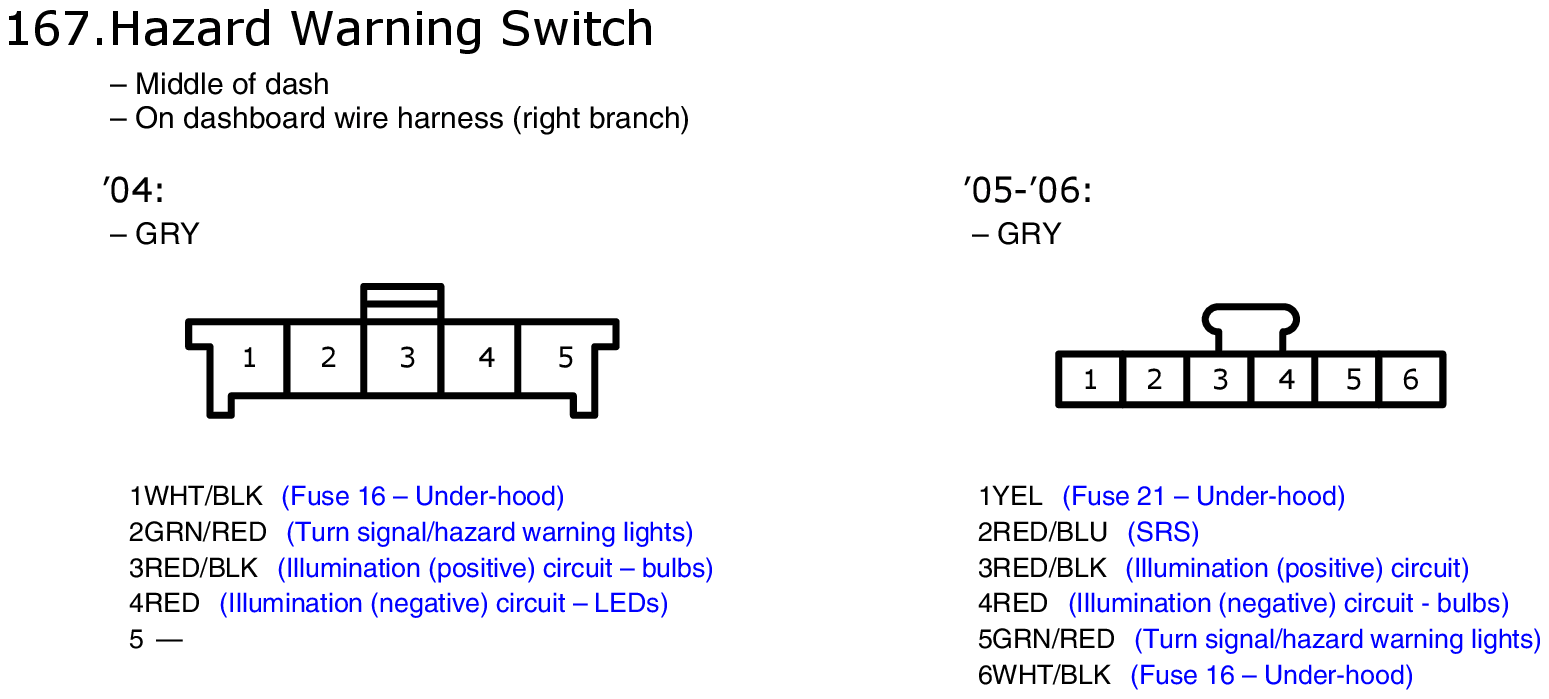

Fig 1: Hazard Warning Switch Connector End View

GHHW10933

Courtesy of AMERICAN HONDA MOTOR CO., INC.
