TP Sensor/Throttle Actuator Connector End View

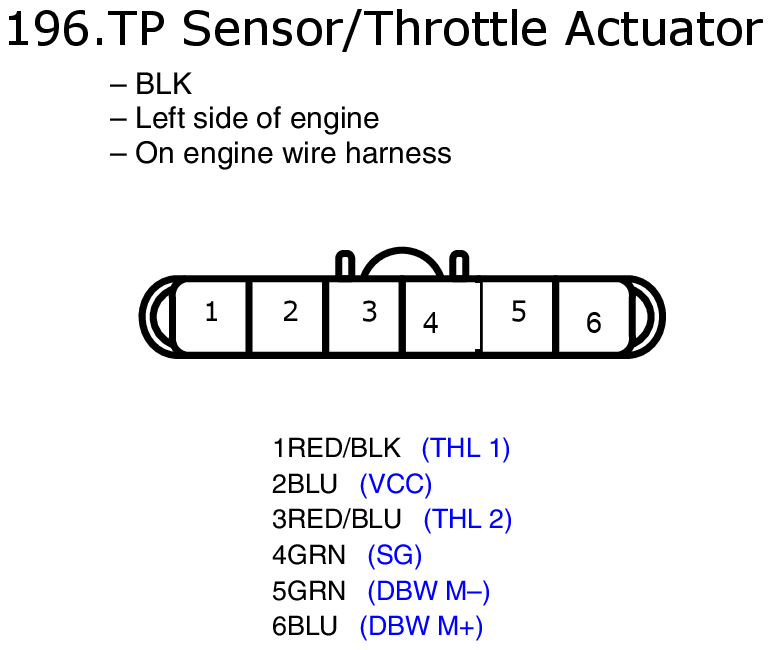

Fig 1: TP Sensor/Throttle Actuator Connector End View

GHHW10962

Courtesy of AMERICAN HONDA MOTOR CO., INC.
