2005-2006 models

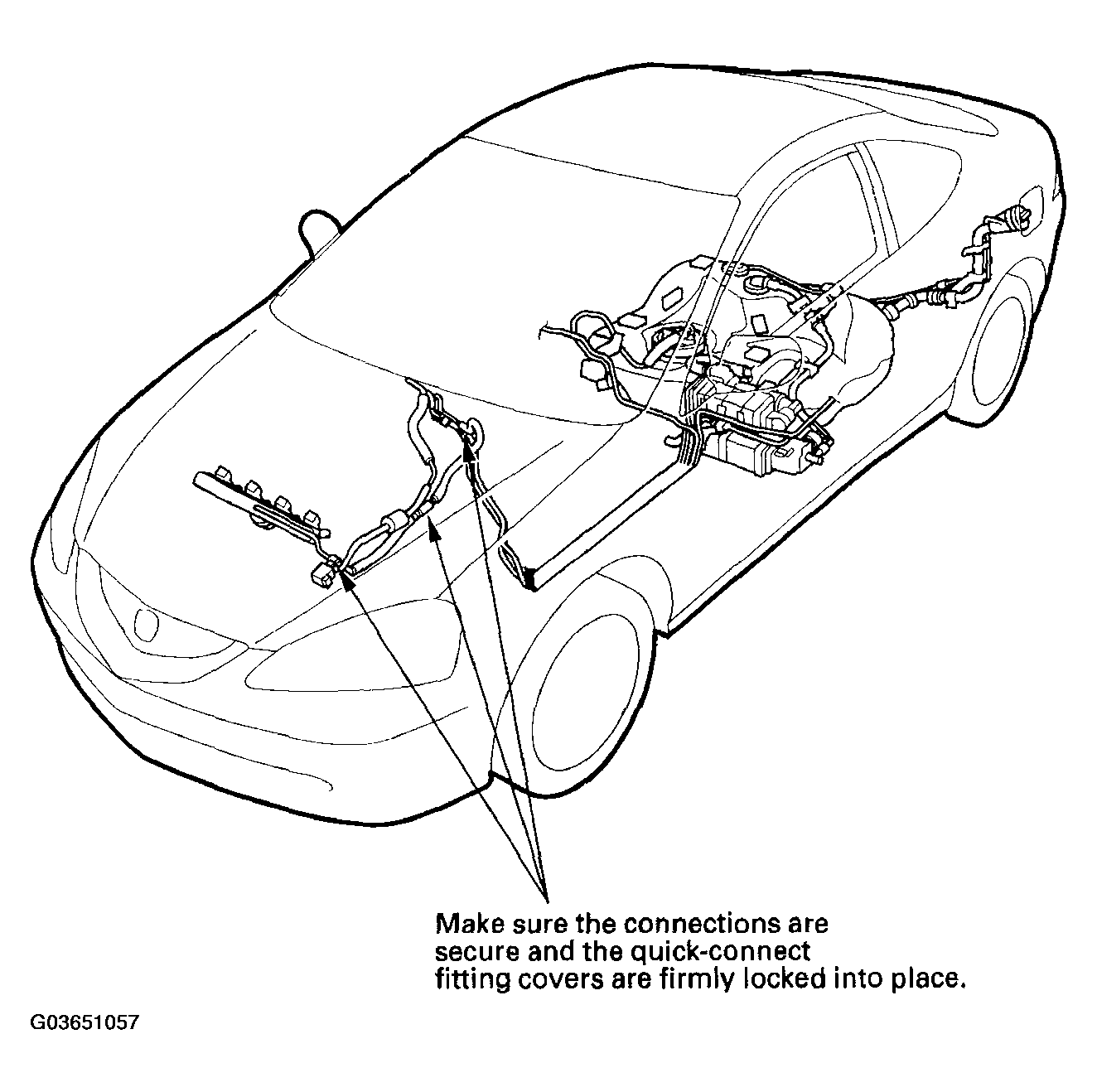

Fig 1: Locating Fuel Line (2005-2006 Models)
G03651057Courtesy of AMERICAN HONDA MOTOR CO., INC.


Check all clamps and retighten if necessary.

"UTRIF": Do not disconnect the hose from the pipe at these joints.

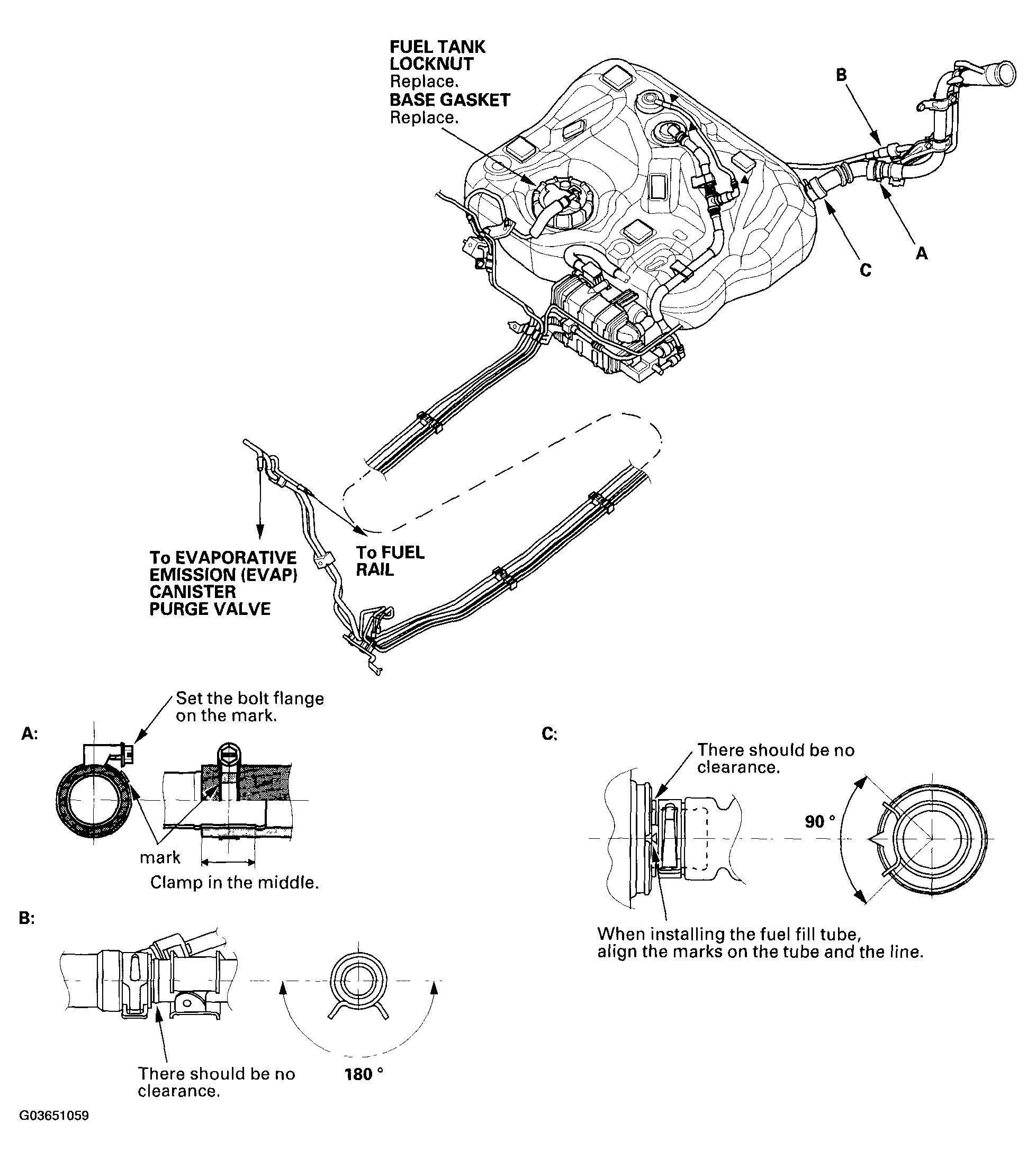

Fig 1: Locating Fuel Line (2005-2006 Models)
G03651059Courtesy of AMERICAN HONDA MOTOR CO., INC.
