Throttle Body Removal/Installation
>>
K20A3 engine
K20A3 engine

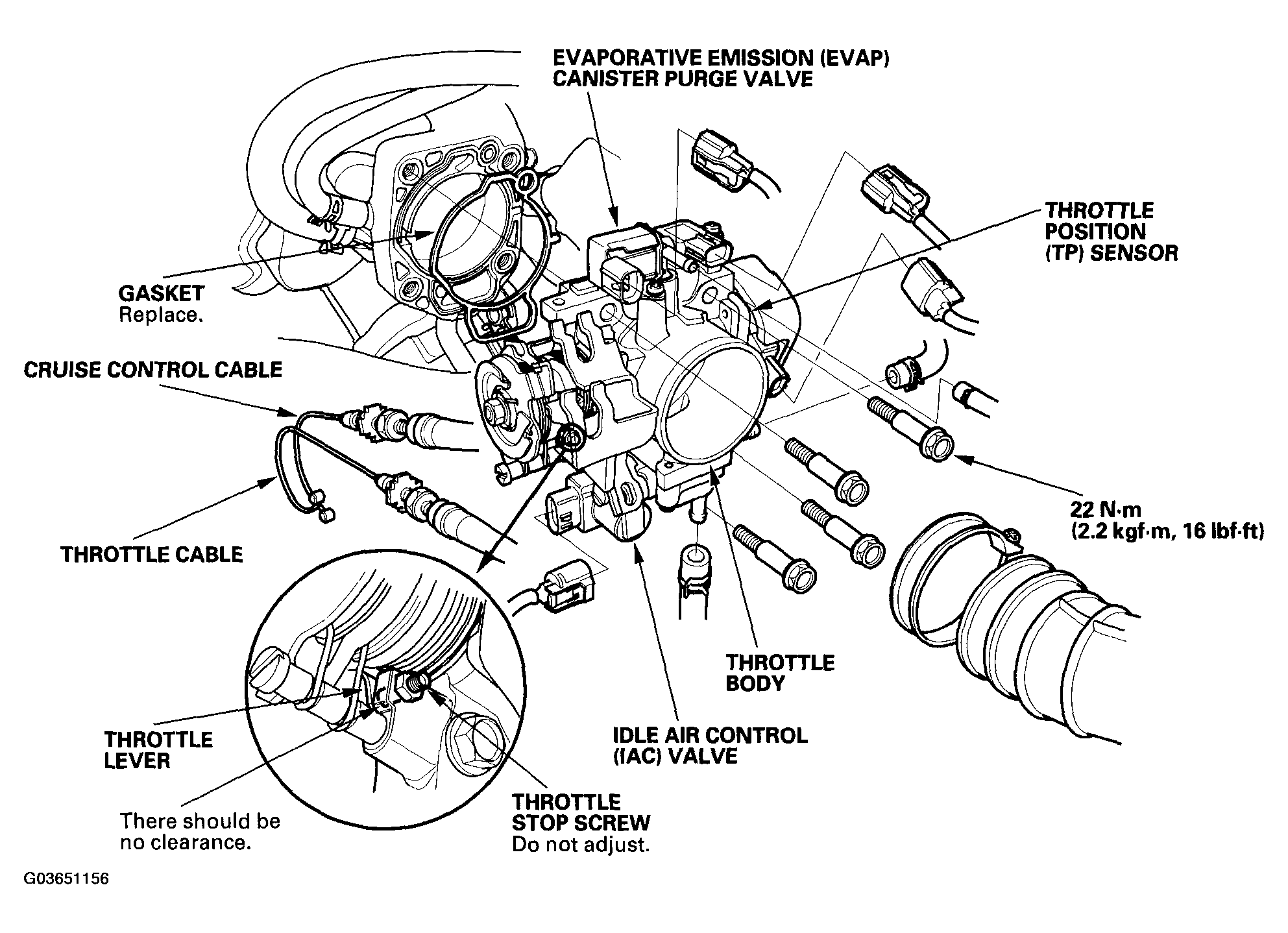

Fig 1: Installing Throttle Body And Torque Specifications (K20A3 Engines)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
