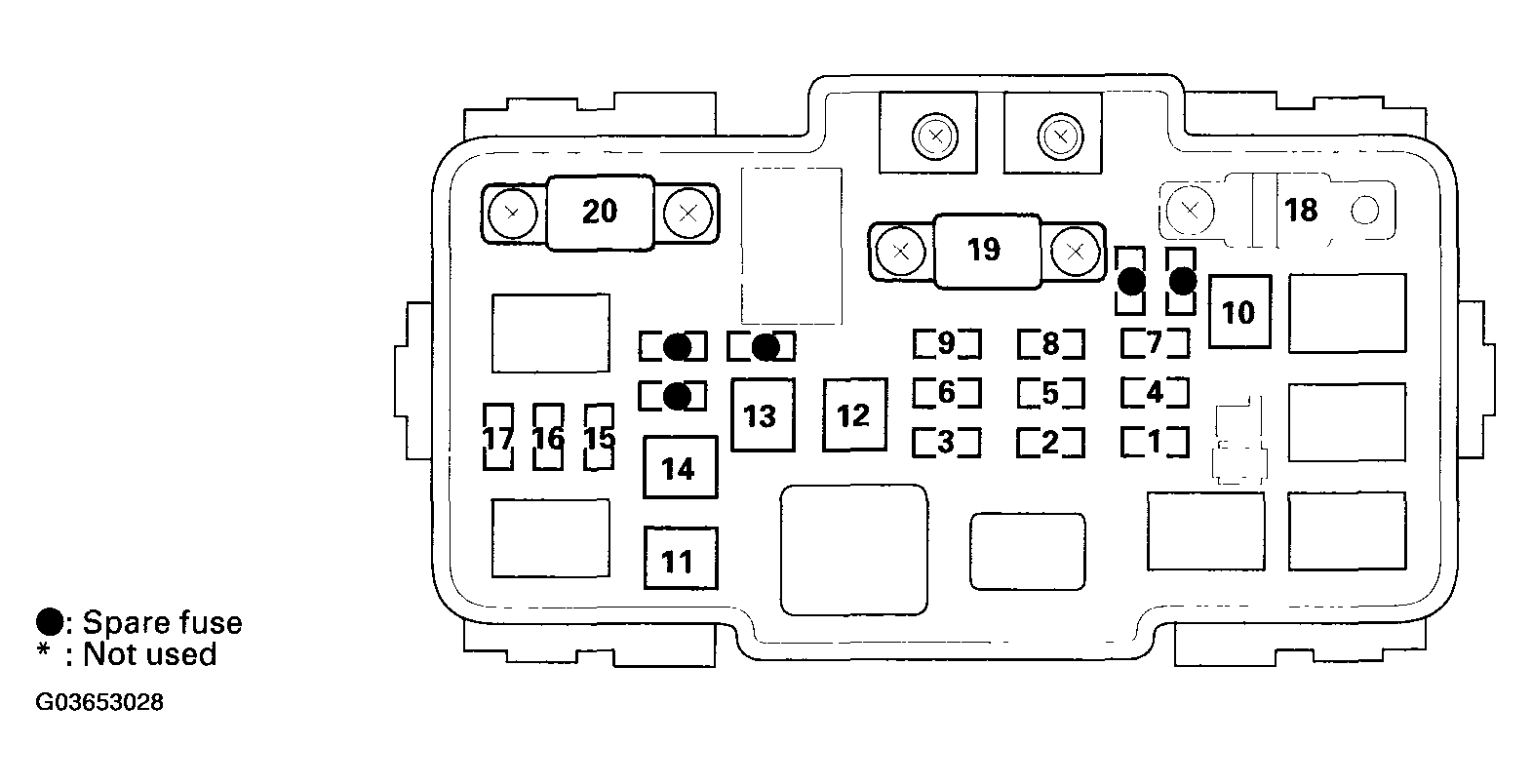

| 1 |
30 A |
BLU/YEL |
A/C condenser fan motor |
| BLU/RED |
A/C compressor clutch |
| 2 |
15 A |
WHT/GRN |
Dash lights, Front parking lights, Front side marker lights
, License plate lights, Taillights, Trailer lighting connector, Rear side marker lights |
| 10 A |
| 3 |
7.5 A |
WHT/BLU |
Cargo area light, Ceiling light, Ignition key light, Spotlights (with moonroof) |
| 4 |
20 A |
BLU/BLK |
Radiator fan motor |
| 5 |
15 A |
WHT/BLK |
Turn signal/hazard relay, Turn signal lights |
| 10 A |
| 6 |
15 A |
WHT/BLK |
CKP sensor, ECM/PCM, IAC valve, Immobilizer control unit-receiver, Injectors, PGM-FI main relay 1 and 2, Camshaft position (CMP) sensor B |
| 20 A |
RED/YEL |
No. 31 and No. 32 fuses (in the auxiliary under-dash fuse/relay box) |
| 7 |
15 A |
WHT/GRN |
Brake lights, Brake signals to ABS modulator-control unit, Cruise control unit, ECM/PCM, Trailer lighting connector. Security horn relay, Security horn |
| BLU/RED |
Horn |
| 8 |
20 A |
WHT/GRN |
ABS modulator-control unit |
| 9 |
7.5 A |
WHT/RED |
Audio unit, Data link connector (DLC), Gauge assembly, Immobilizer control unit-receiver, Immobilizer indicator, Keyless receiver unit, Multiplex control unit, Security control unit |
| 10 |
30 A |
WHT/RED |
ABS modulator-control unit |
| 11 |
40 A |
BLK/YEL |
Rear window defogger, Noise condenser |
| 12 |
40 A |
BLU/WHT |
Blower motor |
| 13 |
40 A |
WHT/BLK |
No. 7 and 21 fuses (in the under-dash fuse/relay box), Power window relay |
| 14 |
30 A |
WHT/RED |
No. 2, 3, 15 and 16 fuses (in the under-dash fuse/relay box) |
| 15 |
20 A |
RED/YEL |
Daytime running lights relay (Canada), Daytime running lights control unit (Canada), High beam indicator light (USA), Left headlight |
| 16 |
15 A |
WHT |
Multiplex control unit |
| 17 |
20 A |
RED |
Daytime running lights control unit (Canada), Right headlight |
| 18 |
- |
WHT/BLU |
Optional connector (Canada) |
| 19 |
100 A |
- |
Battery, Power distribution |
| 20 |
40 A |
WHT |
Ignition switch (BAT) |
| 50 A |
