Rear Seat-back Cover Replacement

NOTE:
  • Take care not to tear the seams or damage the seat covers.
  • Put on gloves to protect your hands.
  1. Remove the seat-back (see REAR SEAT REMOVAL/INSTALLATION  ).

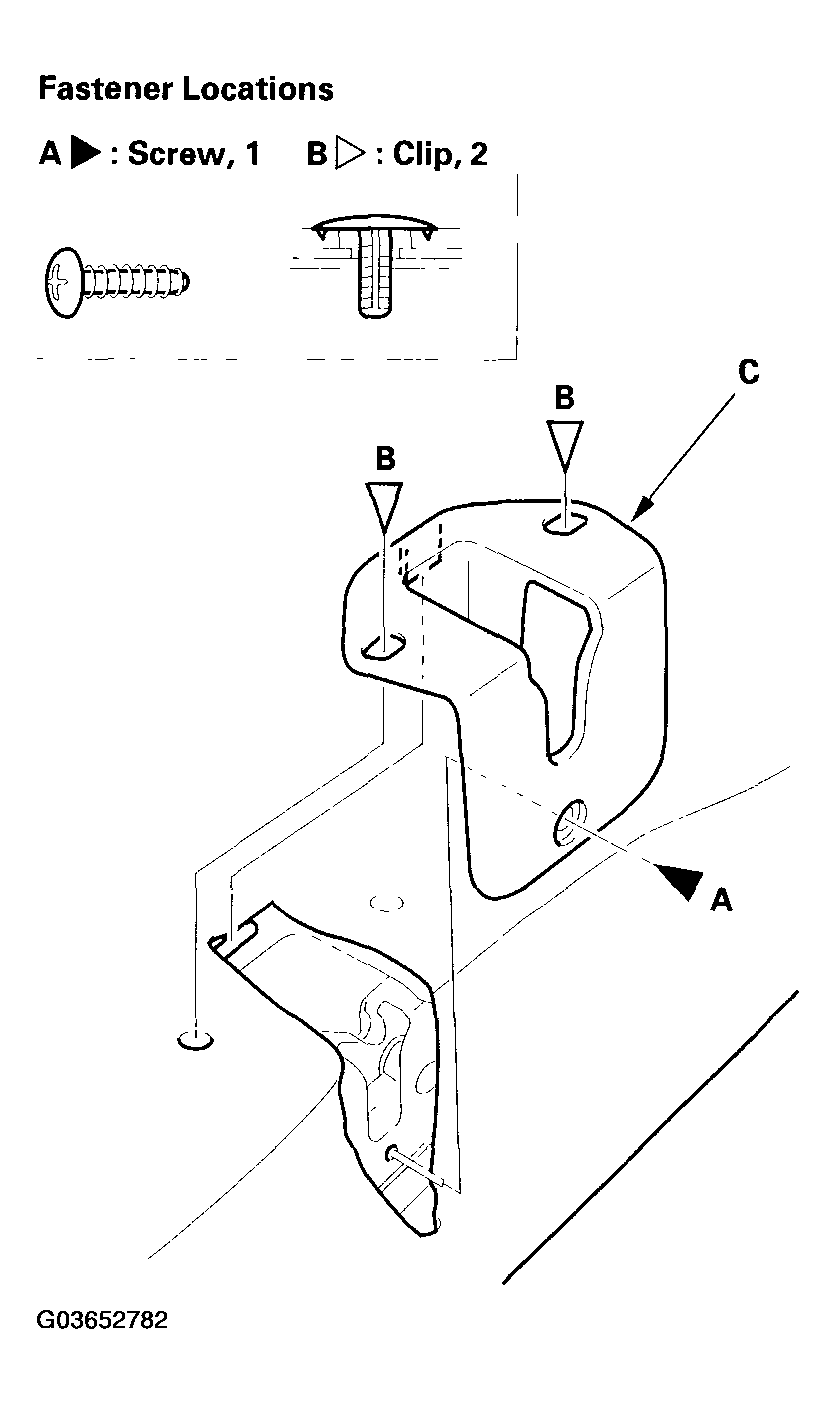

  2. Remove the screw (A) and clips (B), then remove the latch cover (C).
    Fig 1: Removing Latch Cover
    G03652782Courtesy of AMERICAN HONDA MOTOR CO., INC.

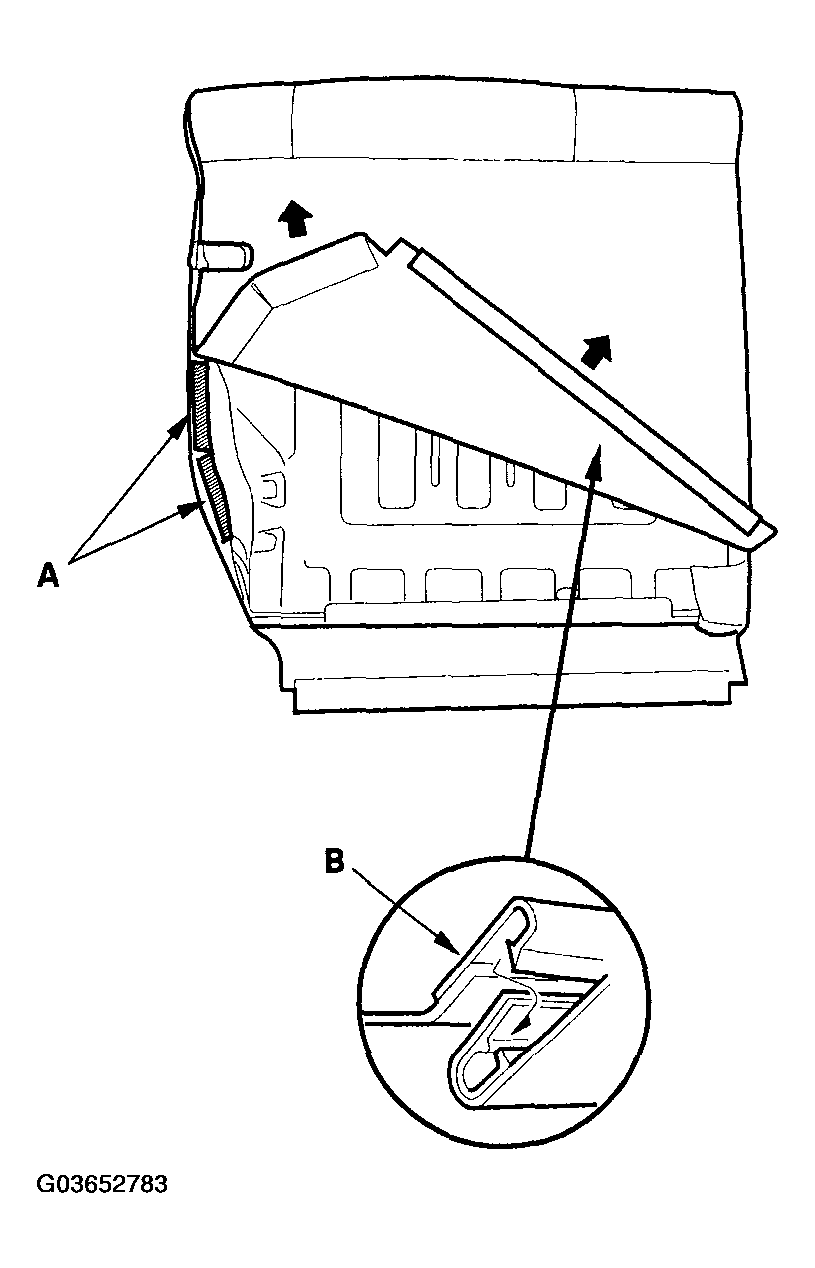

  3. Release the fasteners (A) and hook (B).
    Fig 2: Releasing Fasteners And Hook
    G03652783Courtesy of AMERICAN HONDA MOTOR CO., INC.

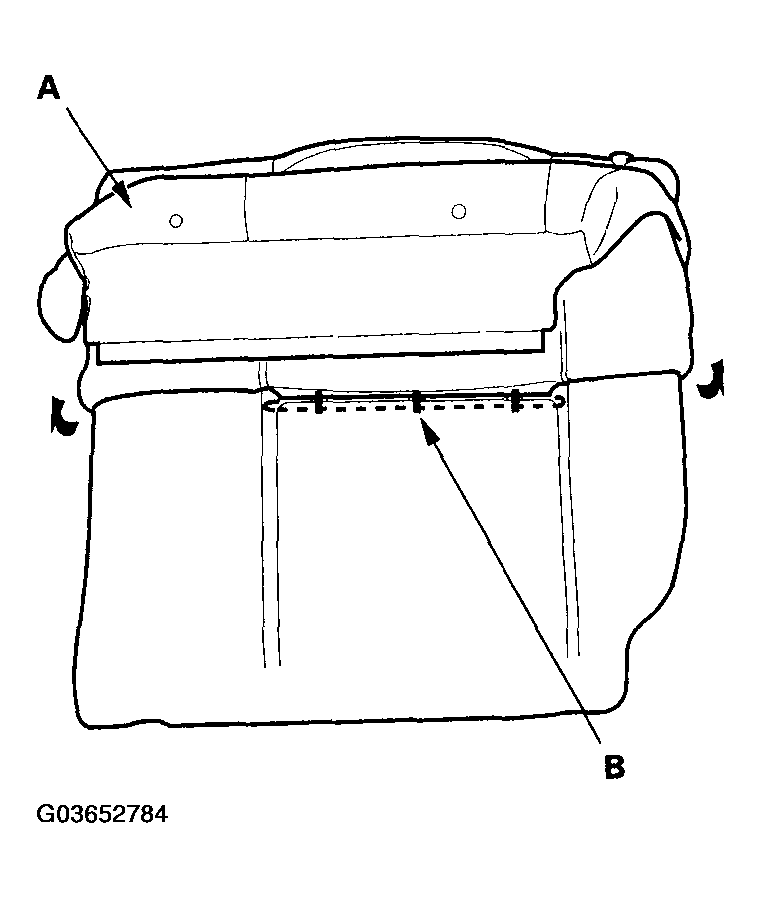

  4. Pull back the seat-back cover (A), and remove the clips (B).
    Fig 3: Pulling Back Seat-Back Cover And Removing Clips
    G03652784Courtesy of AMERICAN HONDA MOTOR CO., INC.

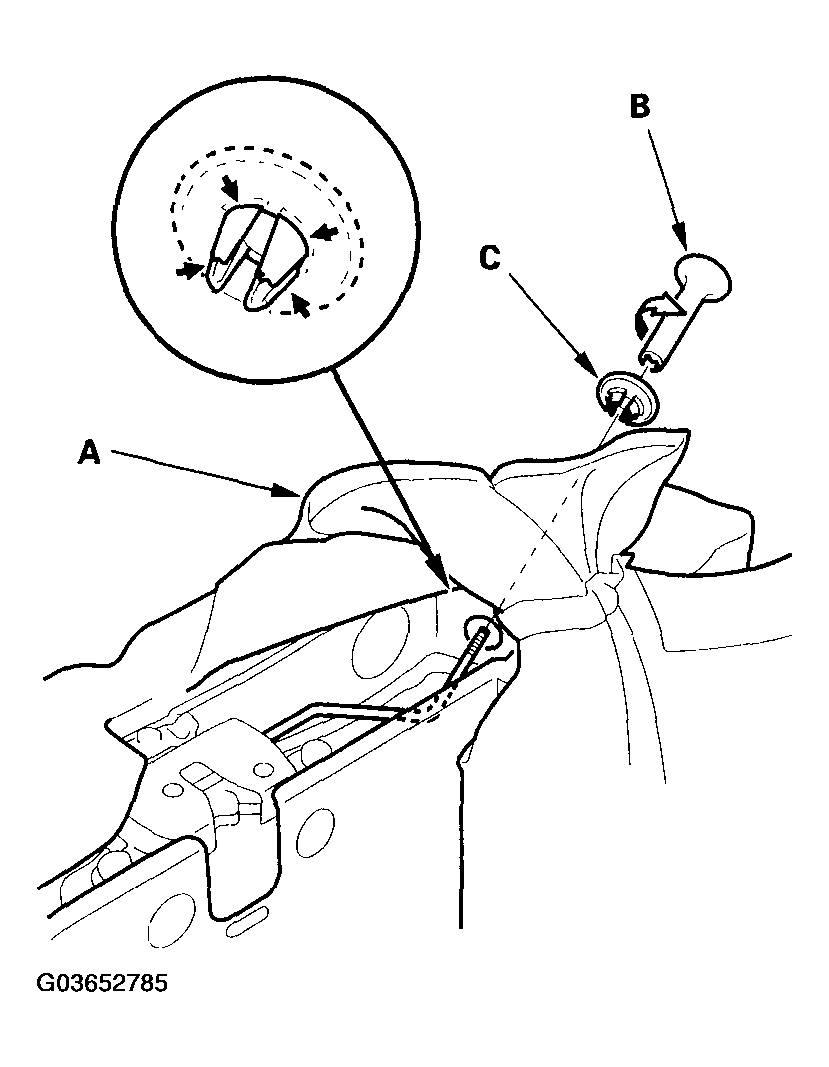

  5. Pull back the seat-back cover (A) all the way around. Remove the latch knob (B), and remove the latch collar (C) by pinching the end and pulling it out.
    Fig 4: Removing Latch Knob And Latch Collar
    G03652785Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the seat-back cover.
  7. Install the cover in the reverse order of removal, and note these items:
    • To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the hook and clips.
    • Replace any clips you removed with new ones. Install them with commercially available upholstery ring pliers.
