A/C Pressure Sensor

The A/C pressure sensor converts A/C pressure into electrical signals to the PCM.

NOTE: The pressures can be monitored using the HDS PGM-FI Data List.

Fig 1: Identifying Sensor Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

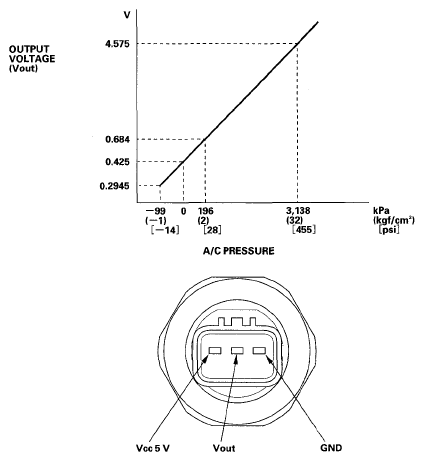

The response of the A/C pressure sensor is shown in the graph.

Fig 2: A/C Pressure And Output Voltage Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.
