Trunk Lid Latch Switch Test

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the trunk lid and remove the trunk lid trim (see TRIM REMOVAL/INSTALLATION - TRUNK LID ).
  2. Disconnect the 3P connector (A) from the trunk lid latch (B).

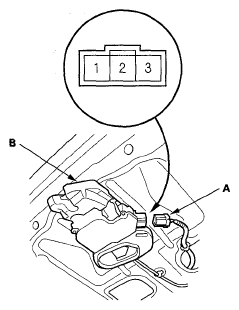

    Fig 1: Identifying Trunk Lid Latch And 3P Connector
    G05462732Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the No. 2 and No. 3 terminals.
    • There should be continuity with the trunk lid latch unlatched (trunk lid open).
    • There should be no continuity with the trunk lid latch latched (trunk lid closed).
  4. If the continuity is not as specified, replace the trunk lid latch switch.
