Glove Box Light Test/Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box stops and damper (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Carefully pry the glove box light out of the glove box housing.
  3. Twist the socket (A) to remove it from the glove box light (B).

    Glove Box Light: 1.4 W

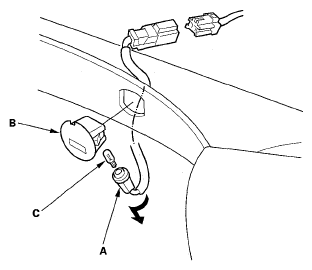

    Fig 1: Twisting Socket
    G05462725Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bulb (C) from the socket.
  5. Install in the reverse order of removal.
