Exploded View

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

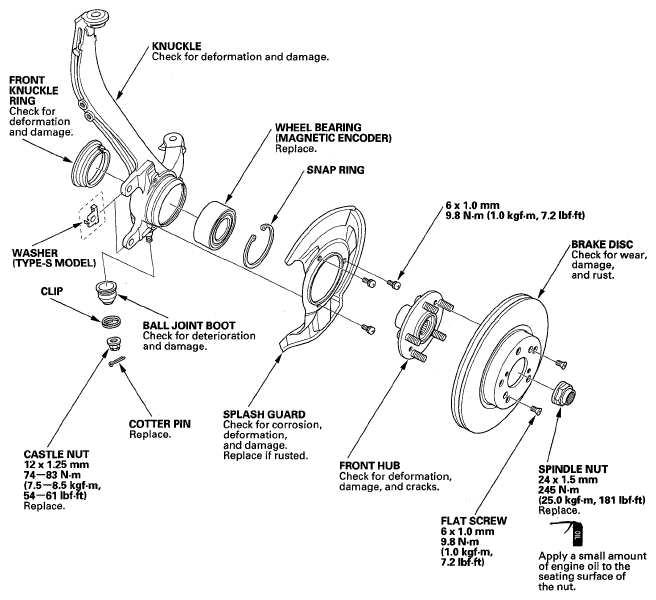

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing Components With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Ball joint remover 07AAF-SEPA100
Ball joint thread protector 07AAF-SEPA200
Hub dis/assembly tool, 42 mm 07GAF-SD40100
Ball joint remover, 28 mm 07MAC-SL0A202
Attachment, 72 x 75 mm 07746-0010600
Driver, 15 x 135 L 07749-0010000
Attachment, 96 mm 07948-SB00101 or 07ZAD-PNA0100
Support base, 73 x 78/82.6 mm 07965-SD90100
