DTC P0983: Open in Shift Solenoid Valve D Circuit: Notes

Fig 1: Shift Solenoid Valve D Circuit Diagram
G04816893

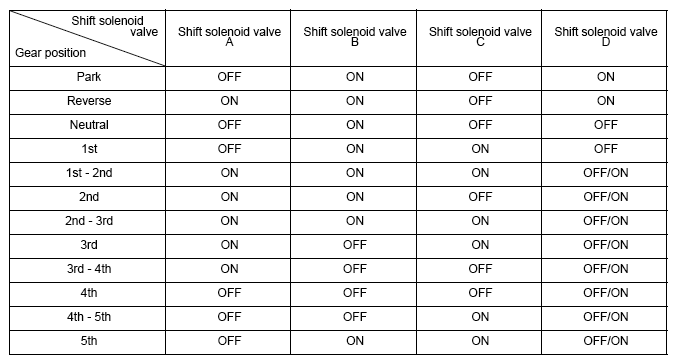

Shift solenoid valve driving signal combination table

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04823052
