EVAP Canister Purge Valve Replacement

  1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).

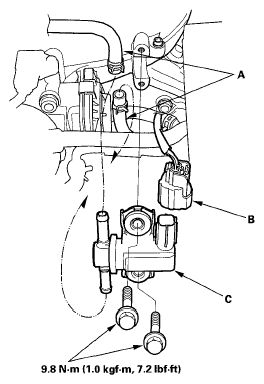

    Fig 1: EVAP Canister Purge Valve With Torque Specifications
    G05495375Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EVAP canister purge valve (C).
  4. Install the parts in the reverse order of removal.
