Driver's Vent Panel Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.

Remove the instrument fascia (see INSTRUMENT FASCIA REMOVAL/INSTALLATION ).
Gently pull out the driver's vent panel (A) to release the clips (B, C), then remove the panel.

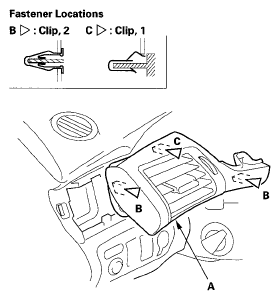

Fig 1: Identifying Driver's Vent Panel To Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
