Washer Tube Replacement: Windshield

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT )
  2. Remove the washer nozzles and clips, then remove the tubes

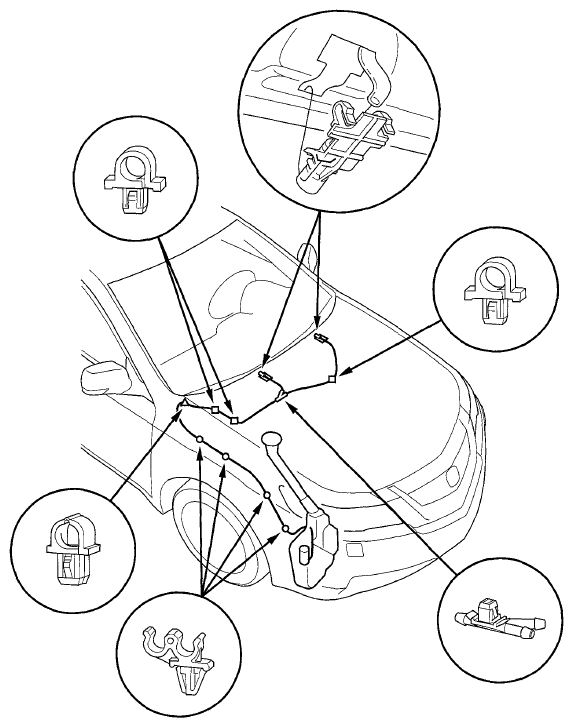

    Fig 1: Identifying Washer Nozzles And Clips
    G05989059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal Take care not to pinch the washer tubes Check the washer operation
