Home >> Acura >> 2006 >> CSX K20A3 >> Repair and Diagnosis >> Engine Performance >> System >> Fuel And Emissions Systems >> System Description >> Vacuum Hose Routing >> K20Z2 engine

K20Z2 engine

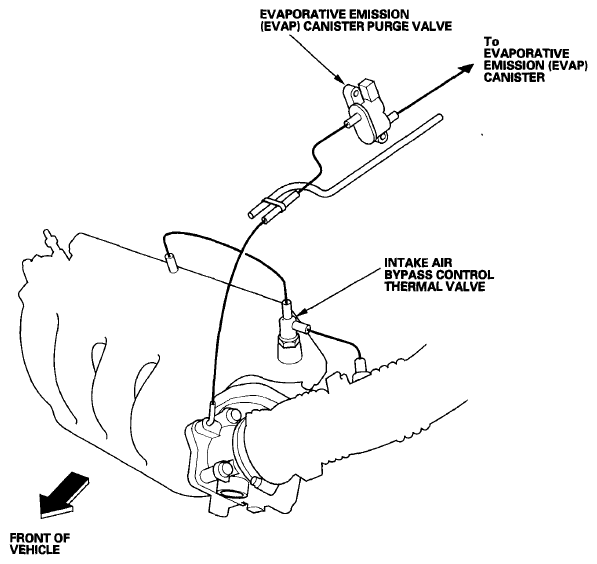

Fig 1: Identifying Vacuum Hose Routing Location (K20Z2 Engine)

G06265750
