Headlight Assembly, Left Connector End View

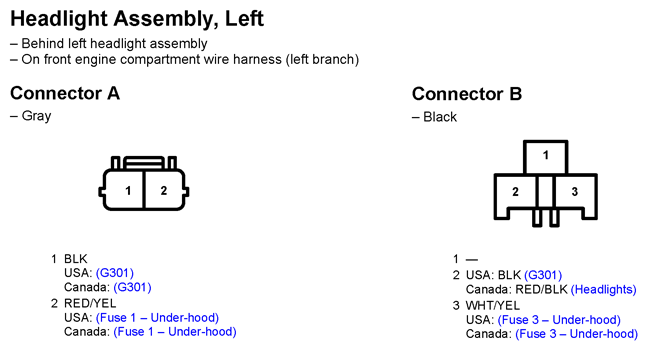

Fig 1: Headlight Assembly, Left Connector End View

G11249496
