Component Location Index

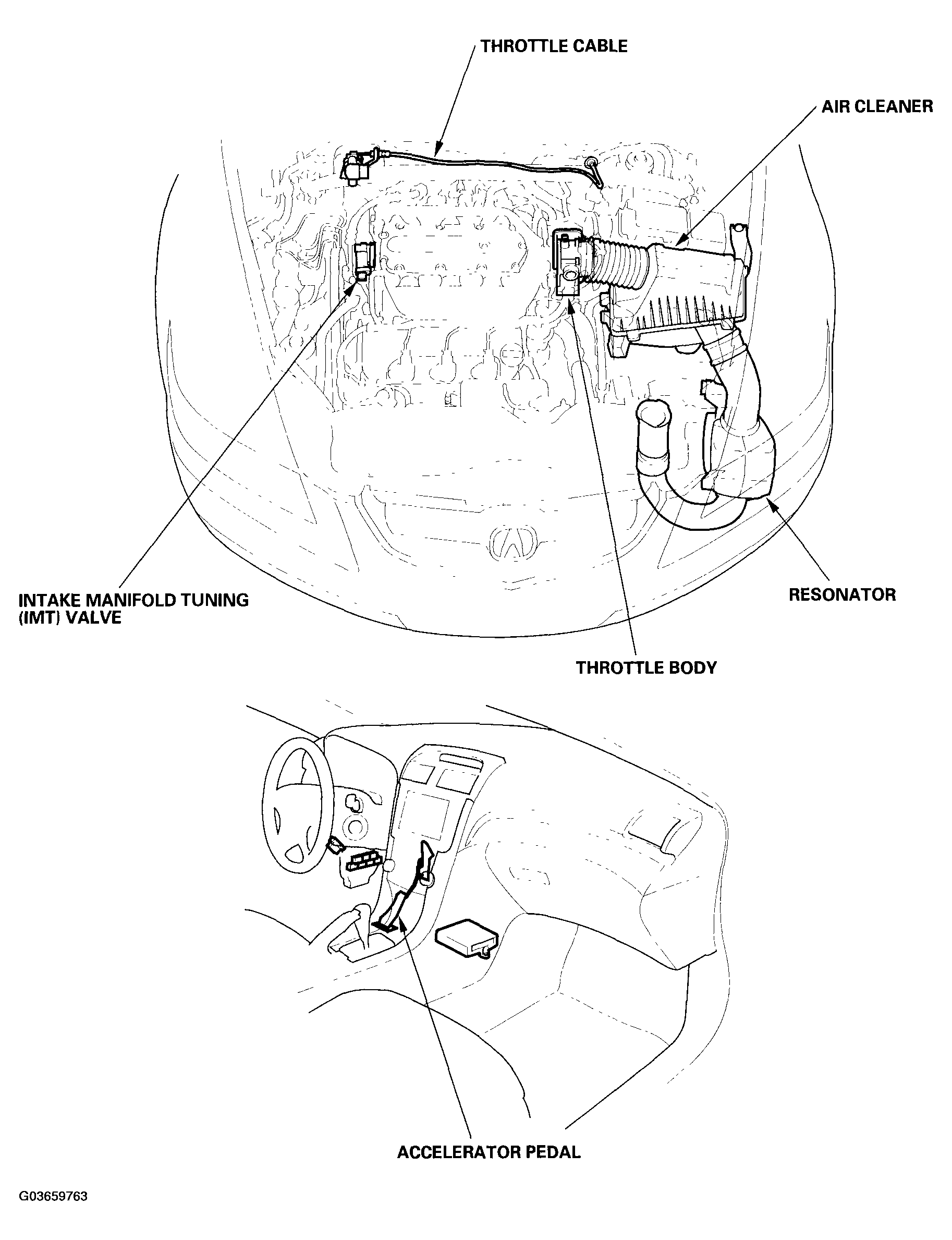

Fig 1: Identifying Intake Air System Components Location

G03659763

Courtesy of AMERICAN HONDA MOTOR CO., INC.
