XM Receiver Connector Inputs and Outputs

When replacing an XM receiver connector, match the wires to the cavities listed in the following table.

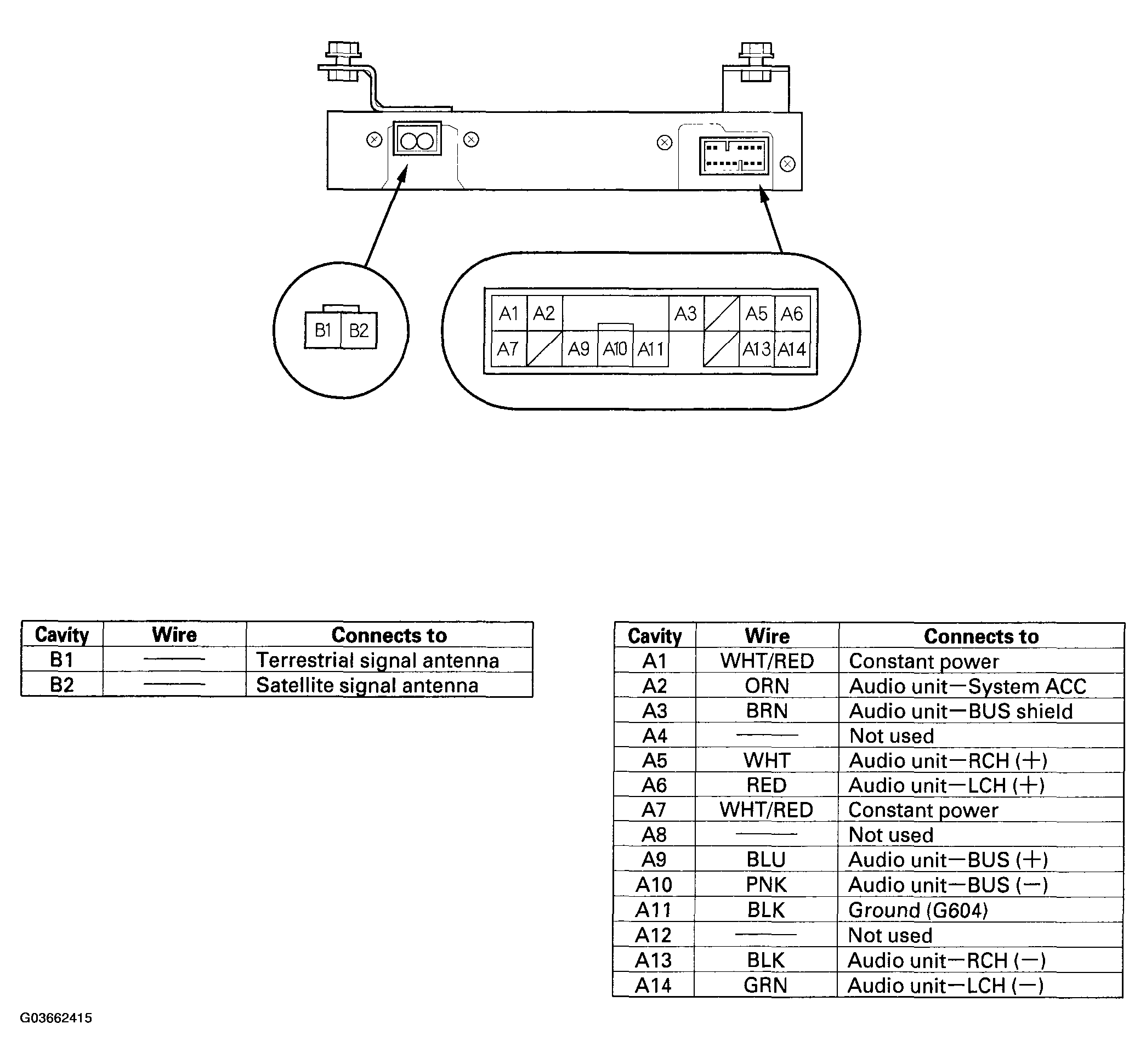

Fig 1: Identifying XM Receiver Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
