Valve Body Valve Installation
- Coat all parts with ATF before assembly.
- Install the valves and springs in the sequence shown for the main valve body (see
MAIN VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ), regulator valve body (see
REGULATOR VALVE BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ), servo body (see
SERVO BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ), and top accumulator body (see

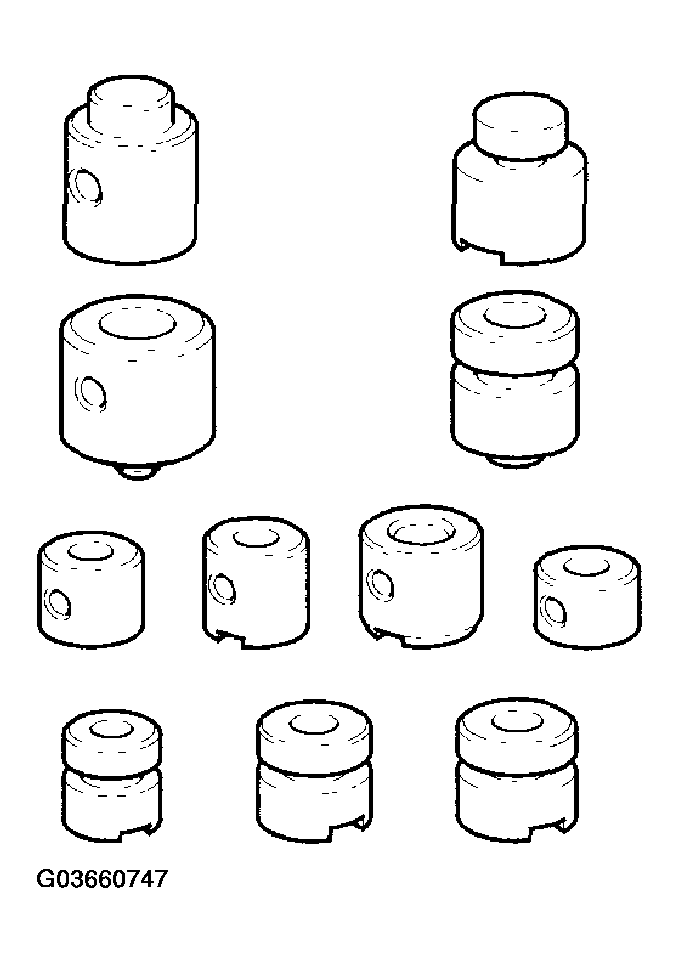

TOP ACCUMULATOR BODY DISASSEMBLY, INSPECTION, AND REASSEMBLY ). Refer to the following valve cap illustrations, and install each valve cap so the end shown facing up will be facing the outside of the valve body.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

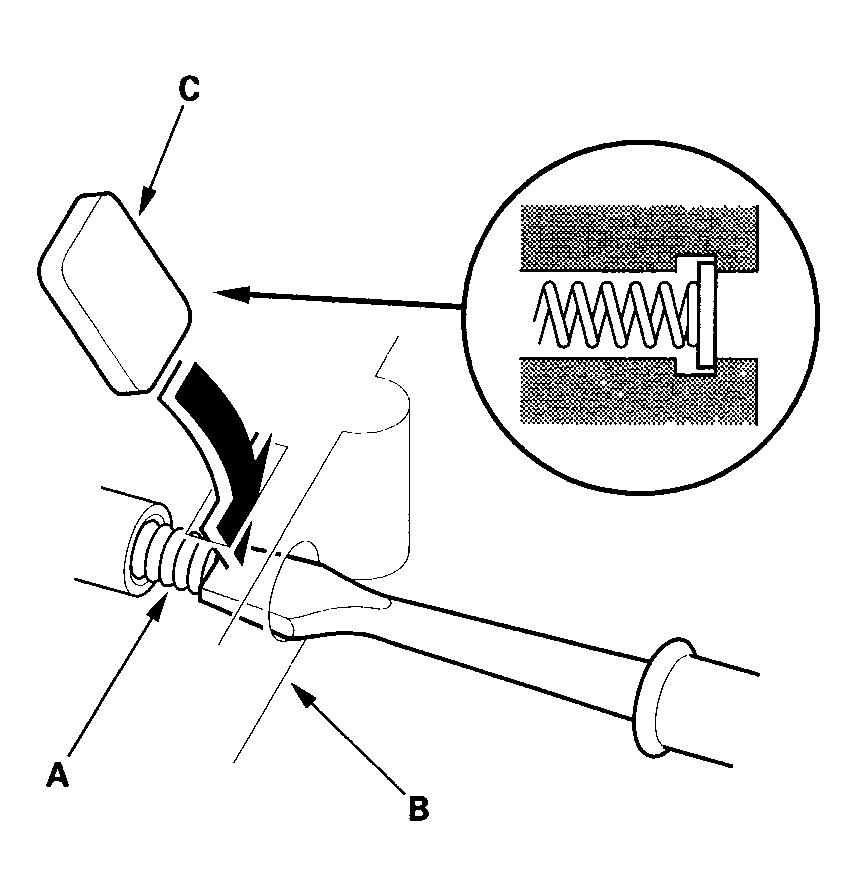

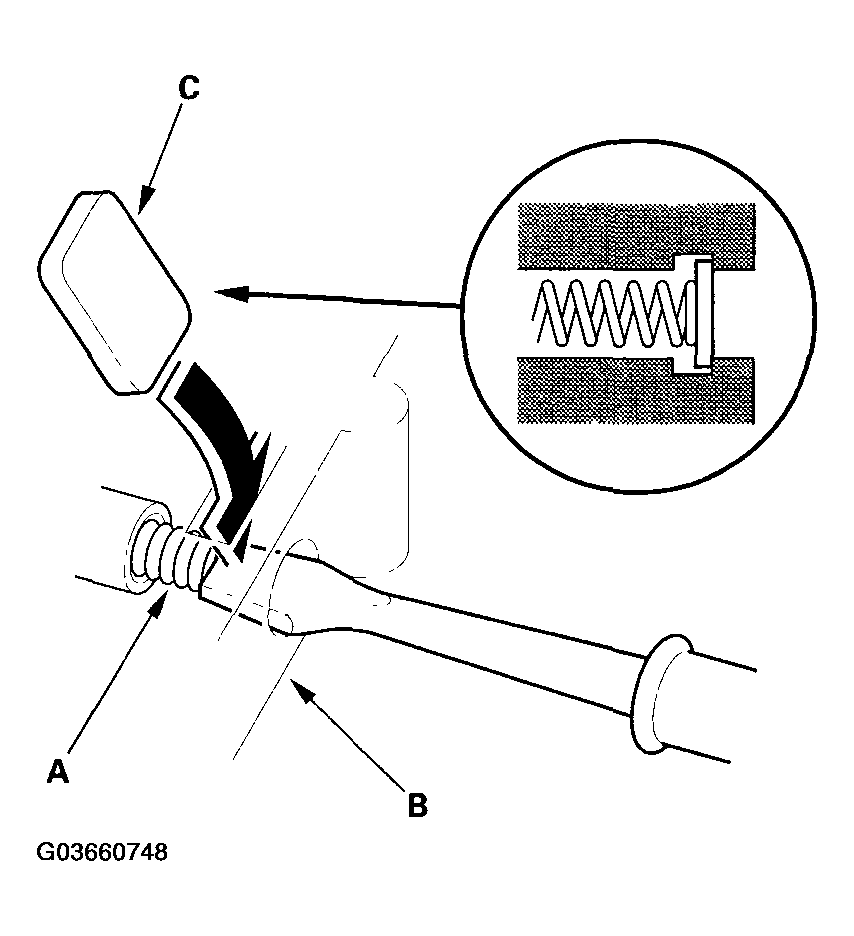

- Install all the springs and seats. Insert the spring (A) in the valve, then install the valve in the valve body (B). Push the spring in with a screwdriver, then install the spring seat (C).
