Selector Control Shaft Oil Seal Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 22 x 24 mm 07746-0010800

1. Remove the oil seal (A) from the end cover (B).

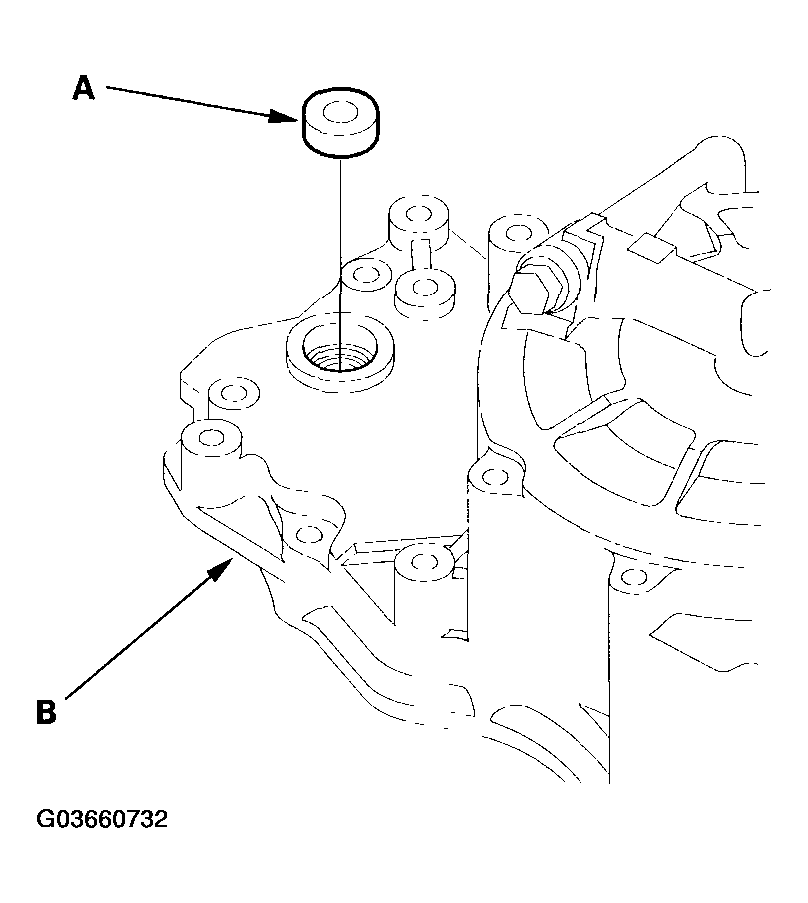

   Fig 1: Removing Oil Seal (A) From End Cover (B)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new oil seal flush to the end cover with the special tools.

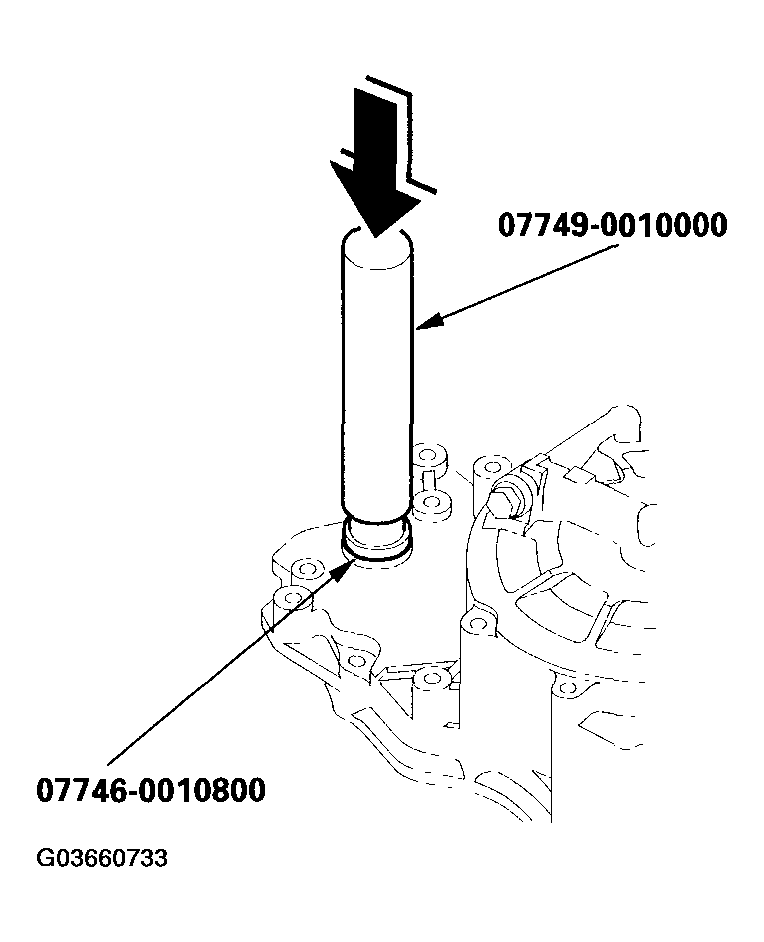

   Fig 2: Installing Oil Seal To End Cover Using Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
