ATF Feed Pipe Replacement

  1. Remove the snap rings (A), ATF feed pipes (B) and feed pipe flanges (C) from the end cover (D).

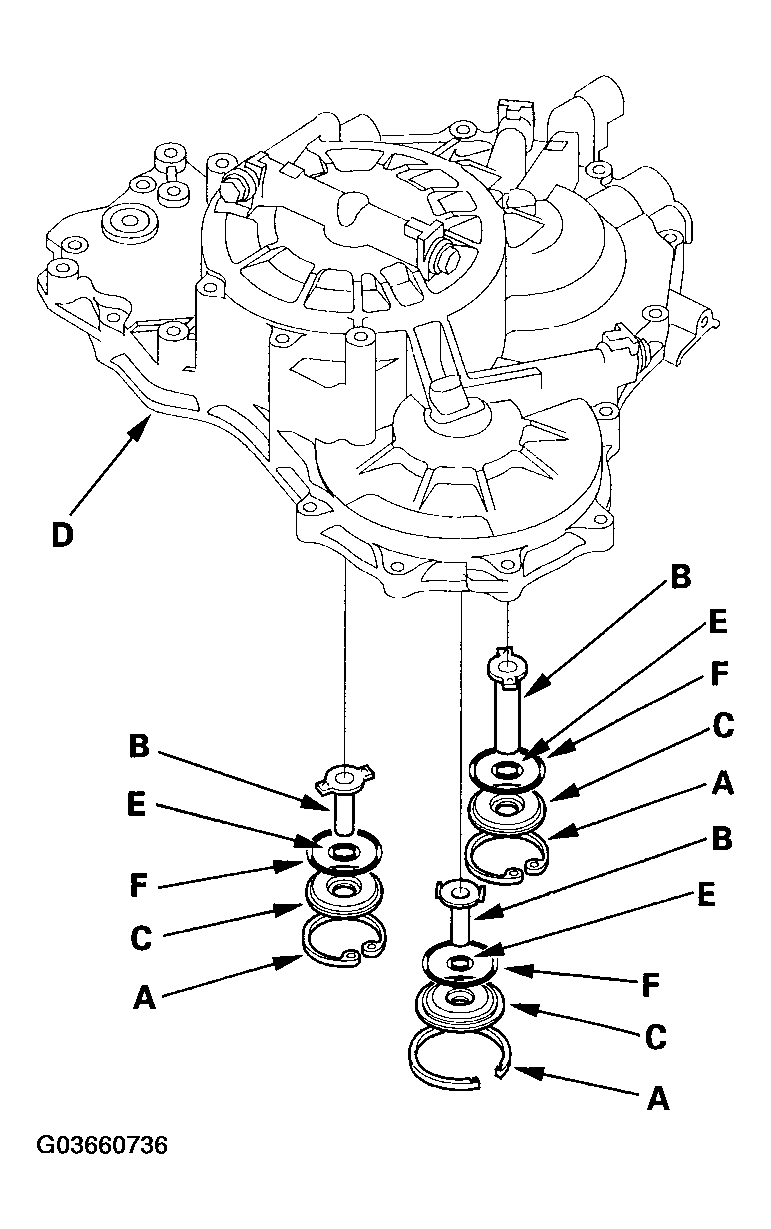

    Fig 1: Identifying Snap Rings (A), ATF Feed Pipes (B), Feed Pipe Flanges (C), End Cover (D) And O-Rings (E, F)
    G03660736Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the new O-ring (E) over the ATF feed pipe.
  3. Install the ATF feed pipe in the end cover by aligning the feed pipe tabs with the indentations in the end cover.
  4. Install the new O-ring (F) in the end cover, then install the feed pipe flange over the ATF feed pipe and O-rings.
  5. Secure the ATF feed pipe and feed pipe flange with the snap ring.
