Countershaft Bearing Replacement

Special Tools Required

• Adjustable bearing puller, 25-40 mm 07736-A01000B or 07736-A01000A
• Driver 07749-0010000
• Attachment, 62 x 68 mm 07746-0010500

1. Remove the countershaft bearing (A) with the special tool and a commercially available 3/8"-16 slide hammer (B).

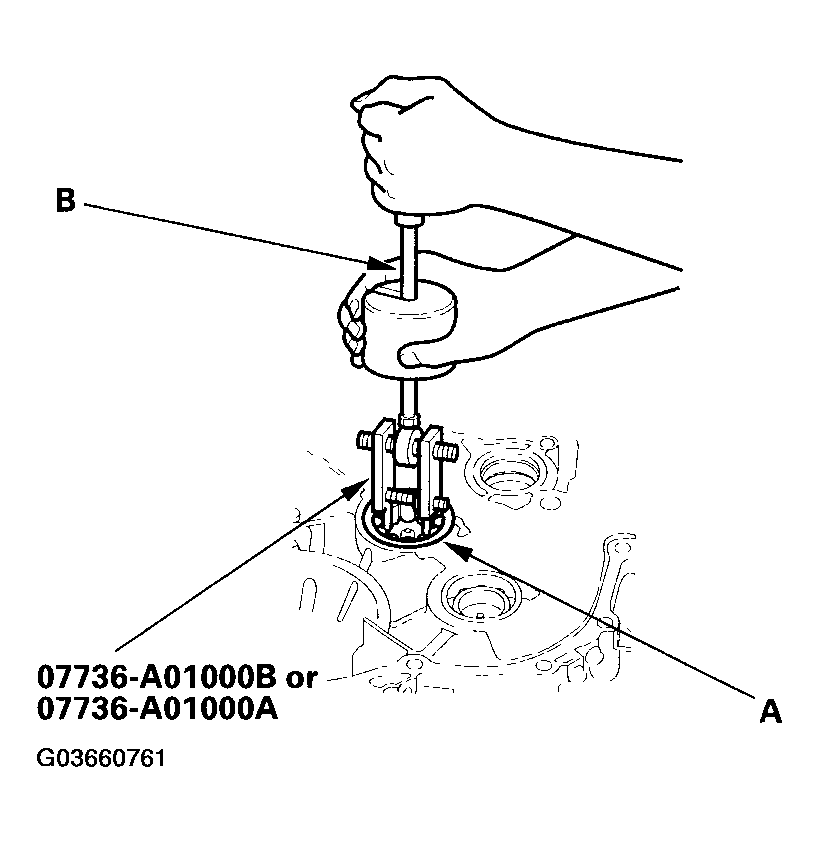

   Fig 1: Identifying Countershaft Bearing (A), Slide Hammer (B) And Special Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the ATF guide plate (A).

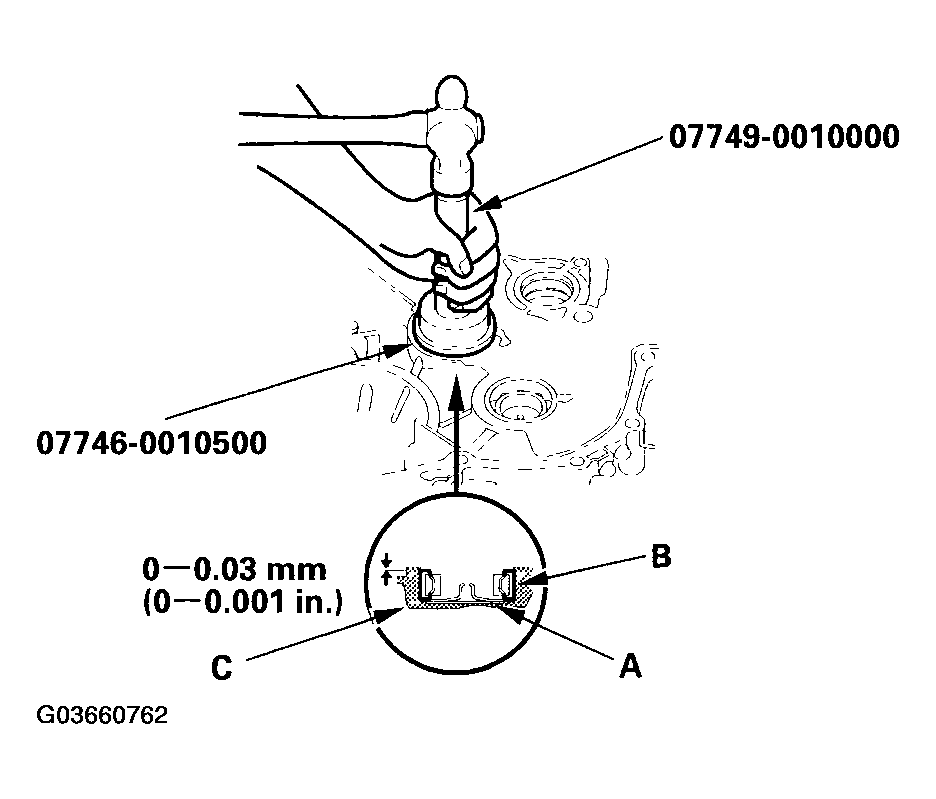

   Fig 2: Identifying ATF Guide Plate (A), Bearing (B), Housing (C) And Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the new bearing (B) into the housing (C) with the special tools.
