How to Remove and Install the PCM

Jump the SCS line with the HDS.
Pull back the carpet.
Remove the ducts (A).

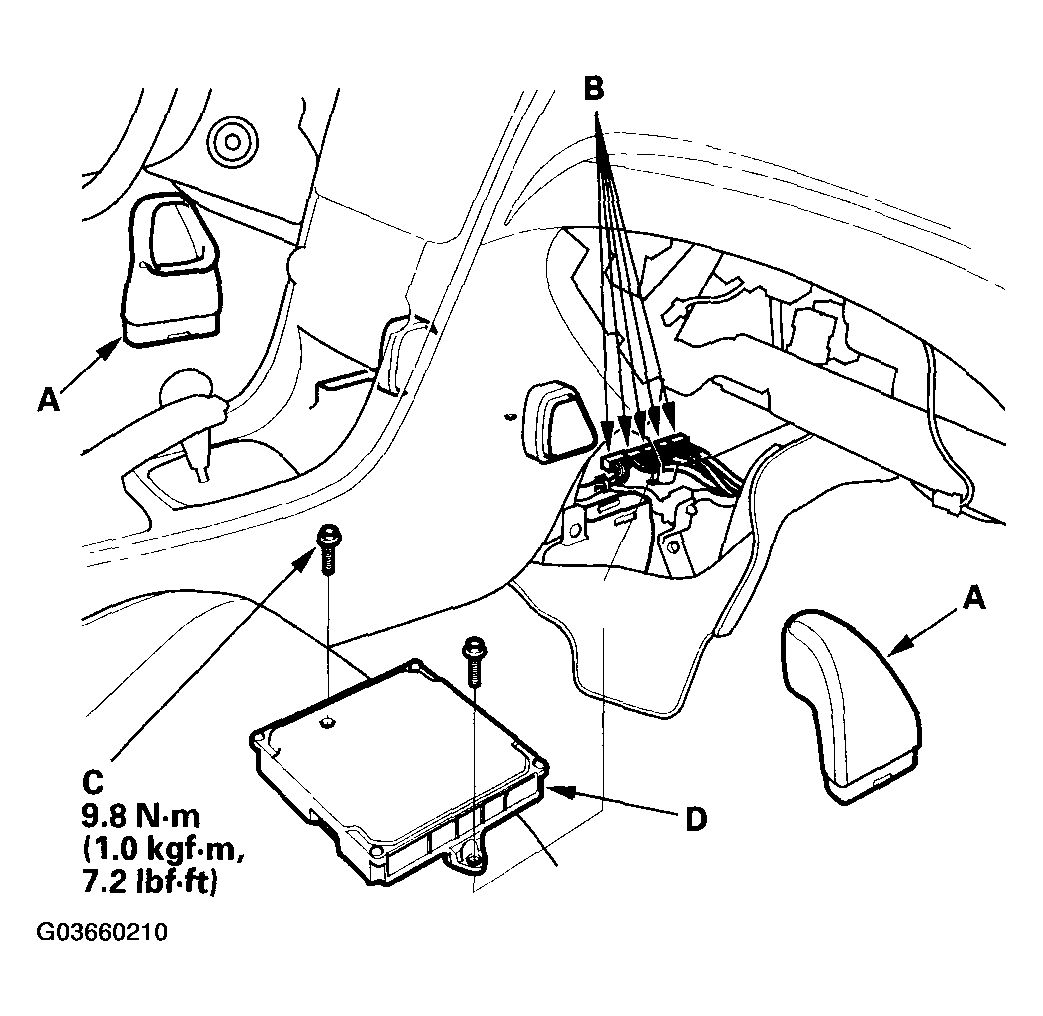

Fig 1: Identifying Ducts (A), PCM Connectors (B), Bolts (C) And PCM (D)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the PCM connectors (B).
Remove the bolts (C), then remove the PCM (D).
Install the PCM in the reverse order of removal.
Open the SCS line with the HDS.
