Automatic Transmission
>>
A/T Gear Position Indicator
>>
Circuit Diagram
>>
2004-2005 Models
2004-2005 Models

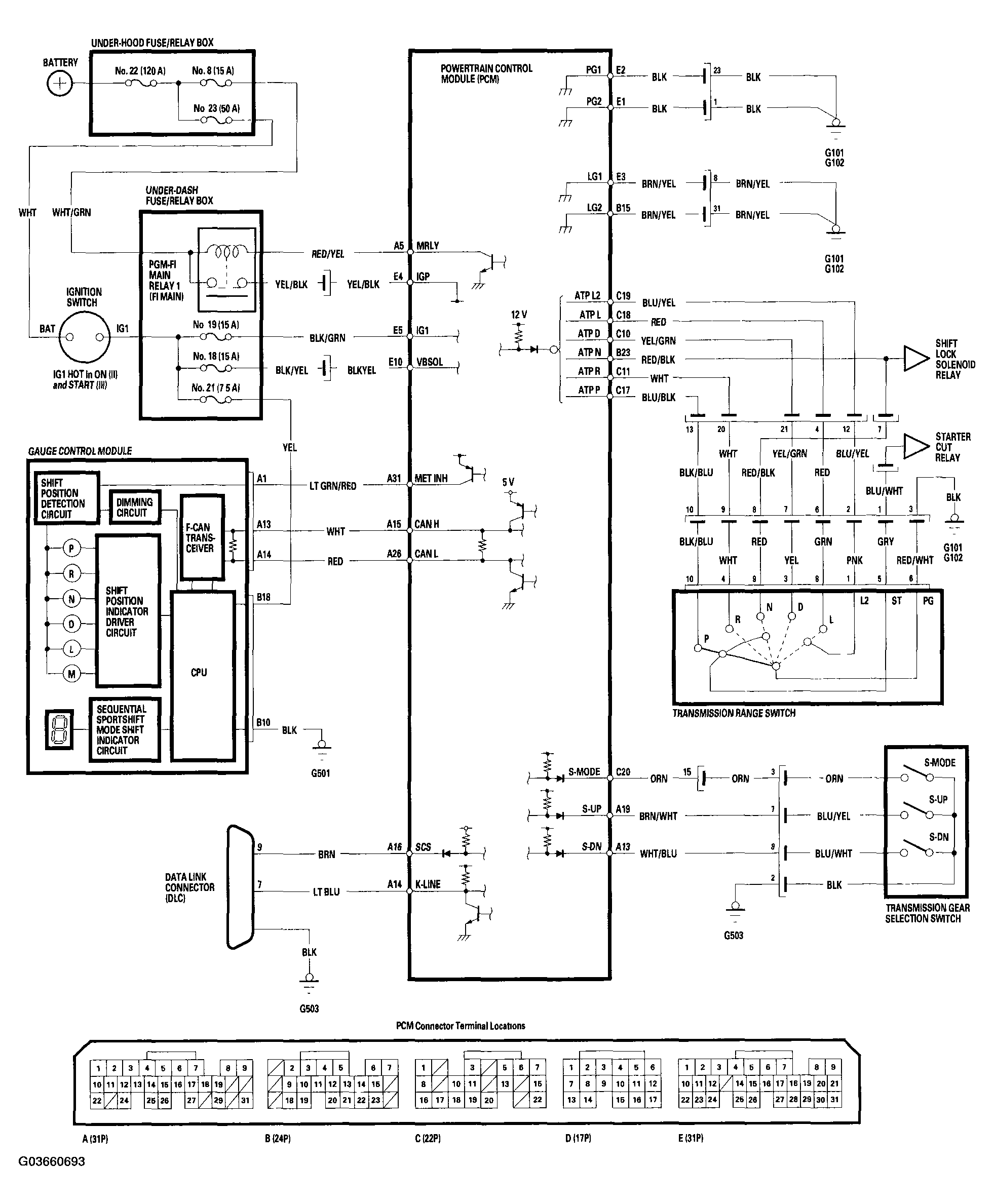

Fig 1: A/T Gear Position Indicator - Circuit Diagram (2004-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
