Oil Seal Replacement

Special Tools Required

• Driver 07749-0010000
• Seal driver attachment 07GAD-PG40101 or 07GAD-PG40100
• Oil seal driver attachment 07JAD-PHH80101

1. Remove the oil seal from the transmission housing.

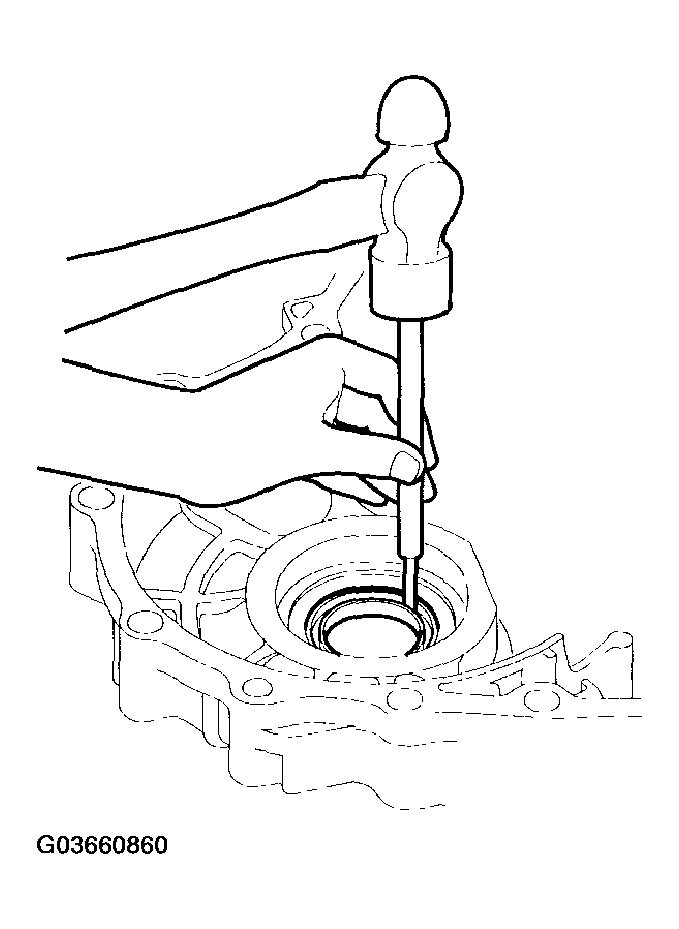

   Fig 1: Removing Oil Seal From Transmission Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the oil seal from the torque converter housing.

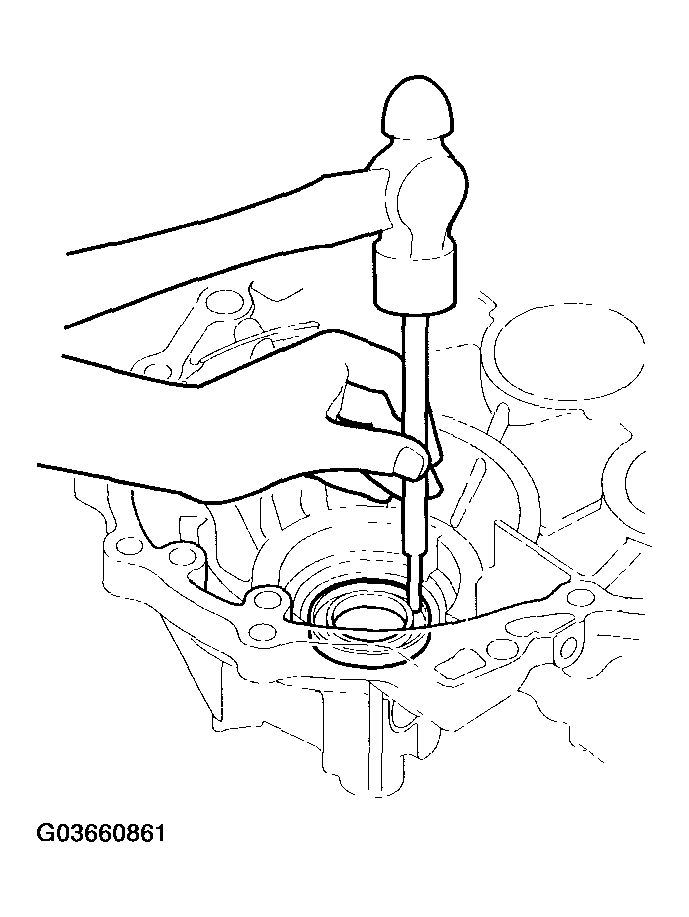

   Fig 2: Removing Oil Seal From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new oil seal (A) in the transmission housing with the special tools.

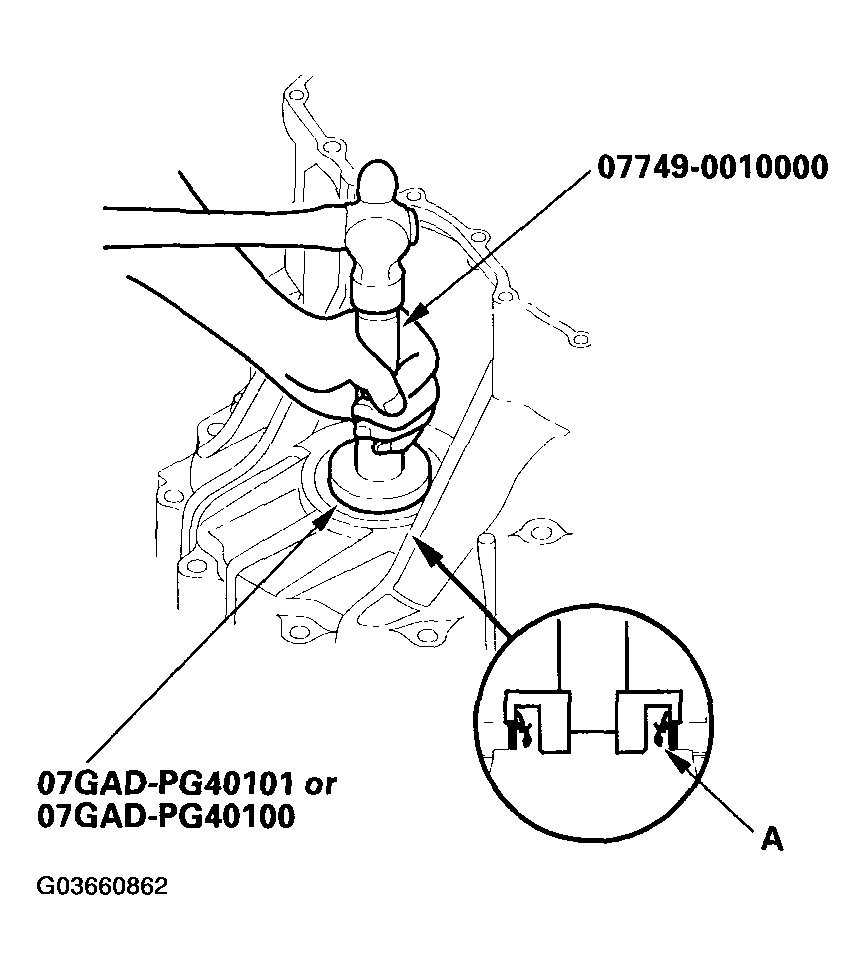

   Fig 3: Installing Oil Seal (A) In Transmission Housing Using Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install a oil seal (A) in the torque converter housing with the special tools.

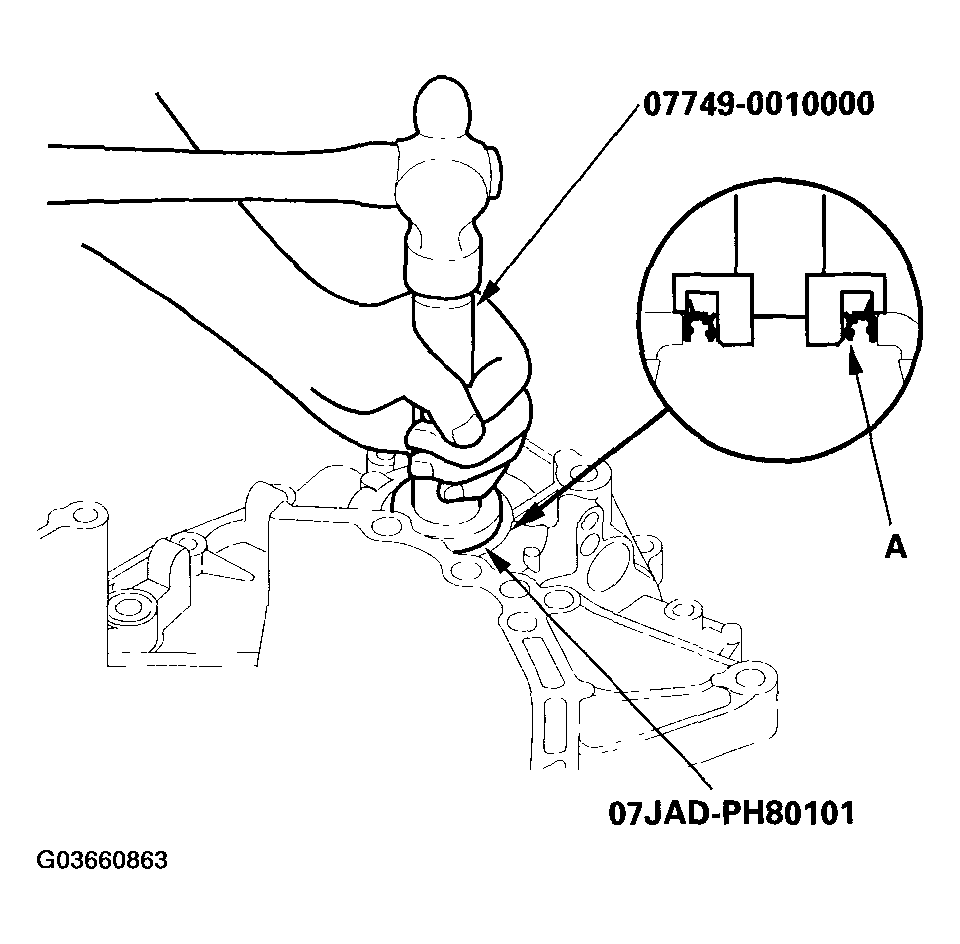

   Fig 4: Installing Oil Seal (A) In Torque Converter Housing Using Special Tools

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
