Dual Mode Control System

All modes (except defroster) can be controlled independently.

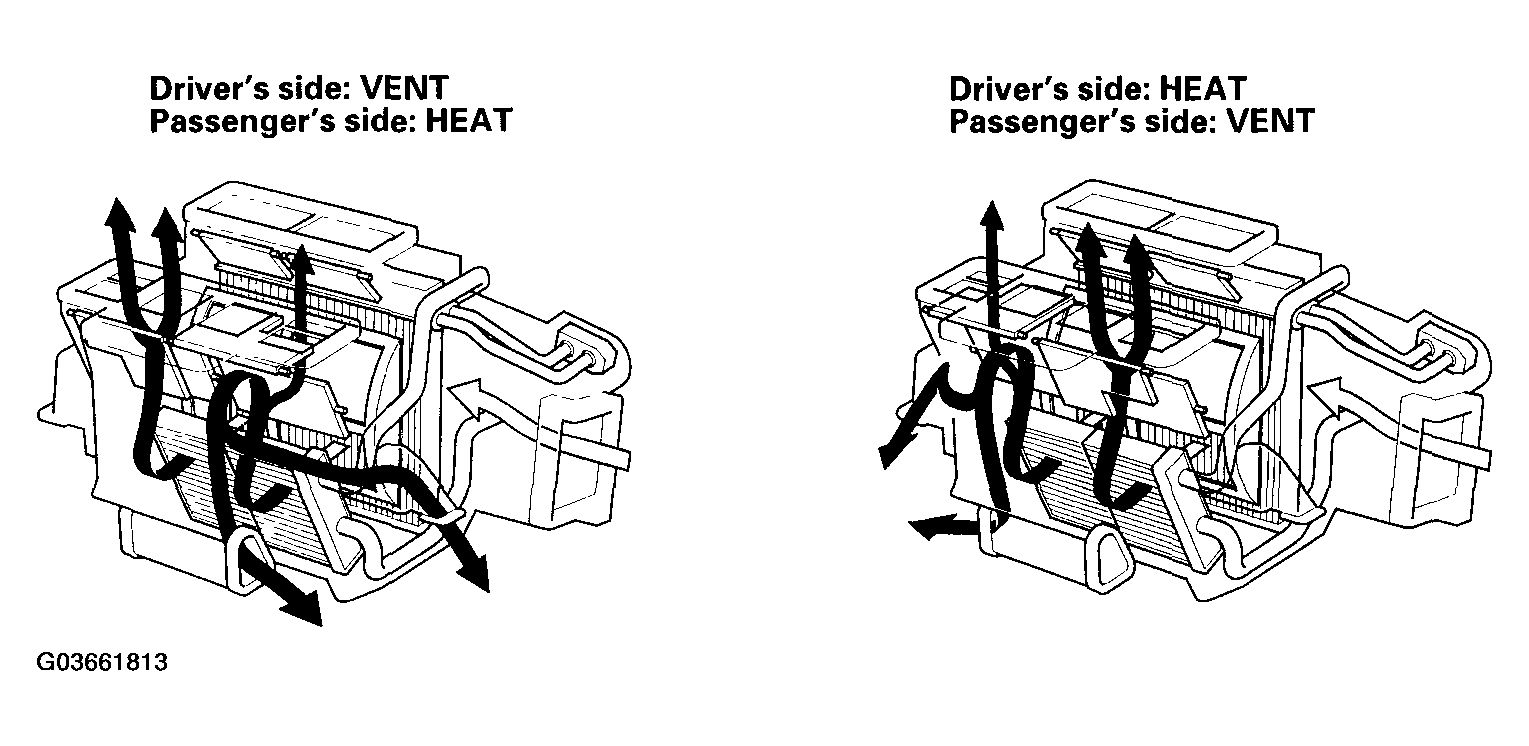

Fig 1: Identifying Dual Mode Control System

G03661813

Courtesy of AMERICAN HONDA MOTOR CO., INC.
