ECM/PCM Electrical Connections - 2006 Model

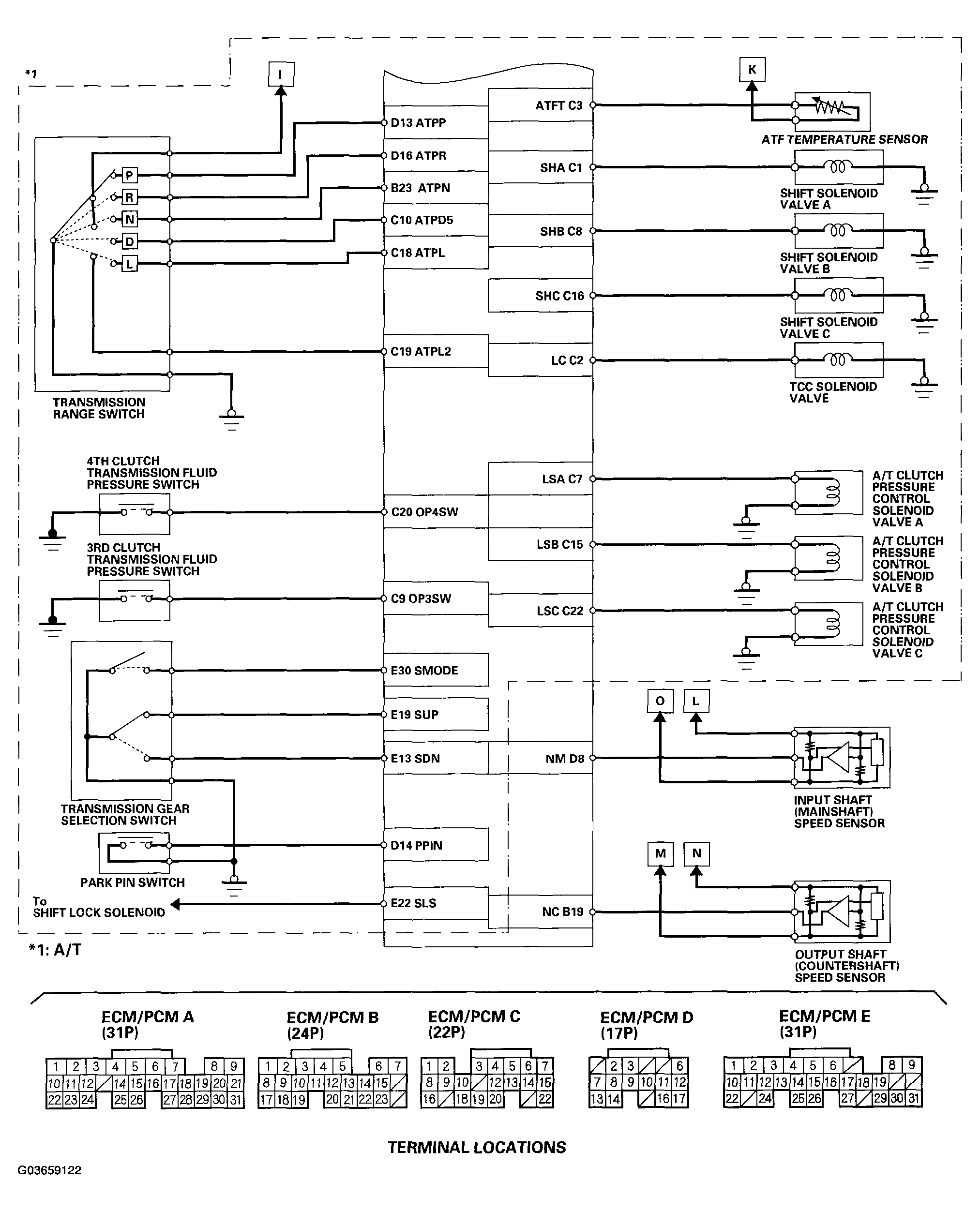

Fig 1: ECM/PCM Electrical Connections - 2006 Models Wiring Diagram (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

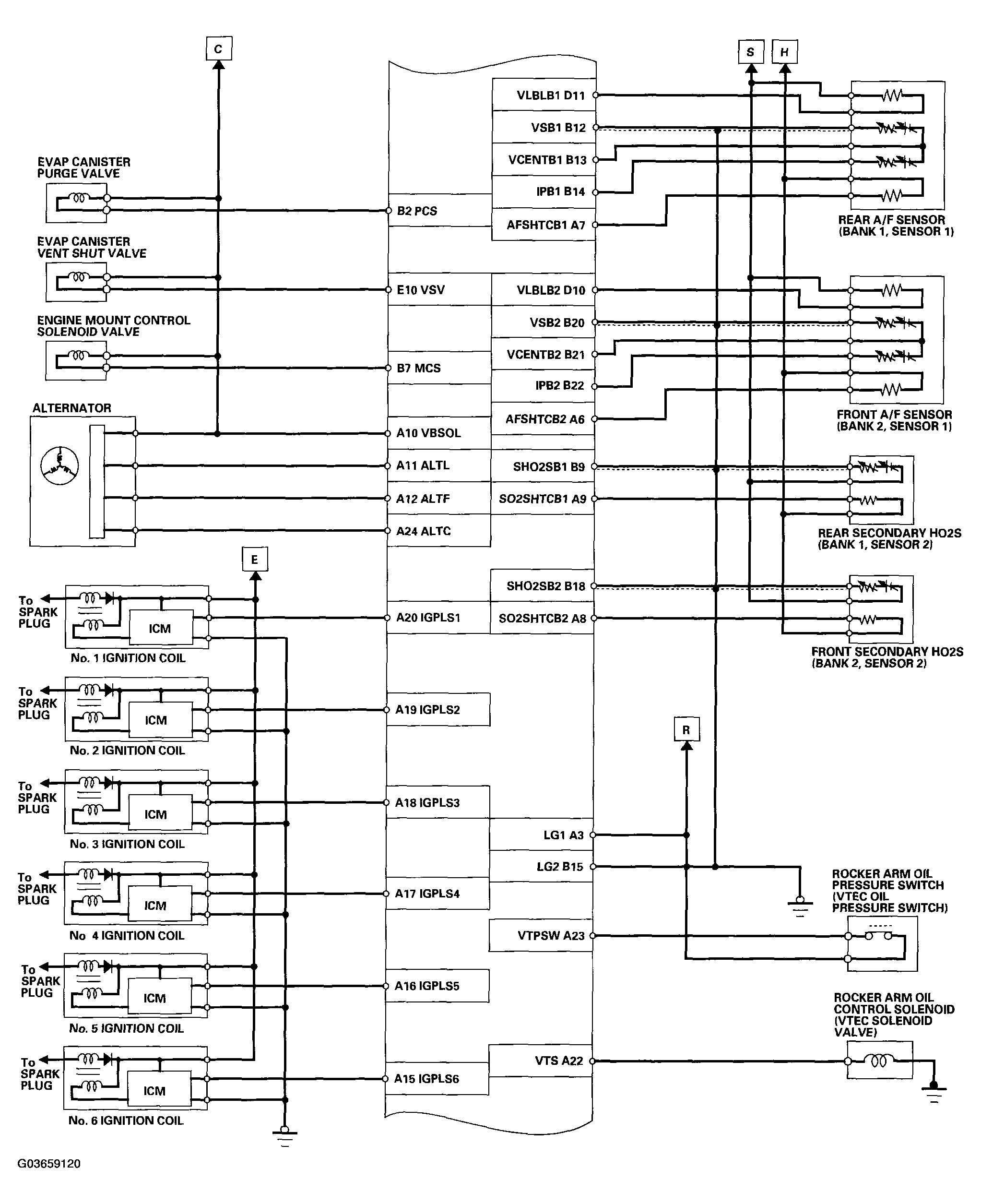

Fig 2: ECM/PCM Electrical Connections - 2006 Models Wiring Diagram (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

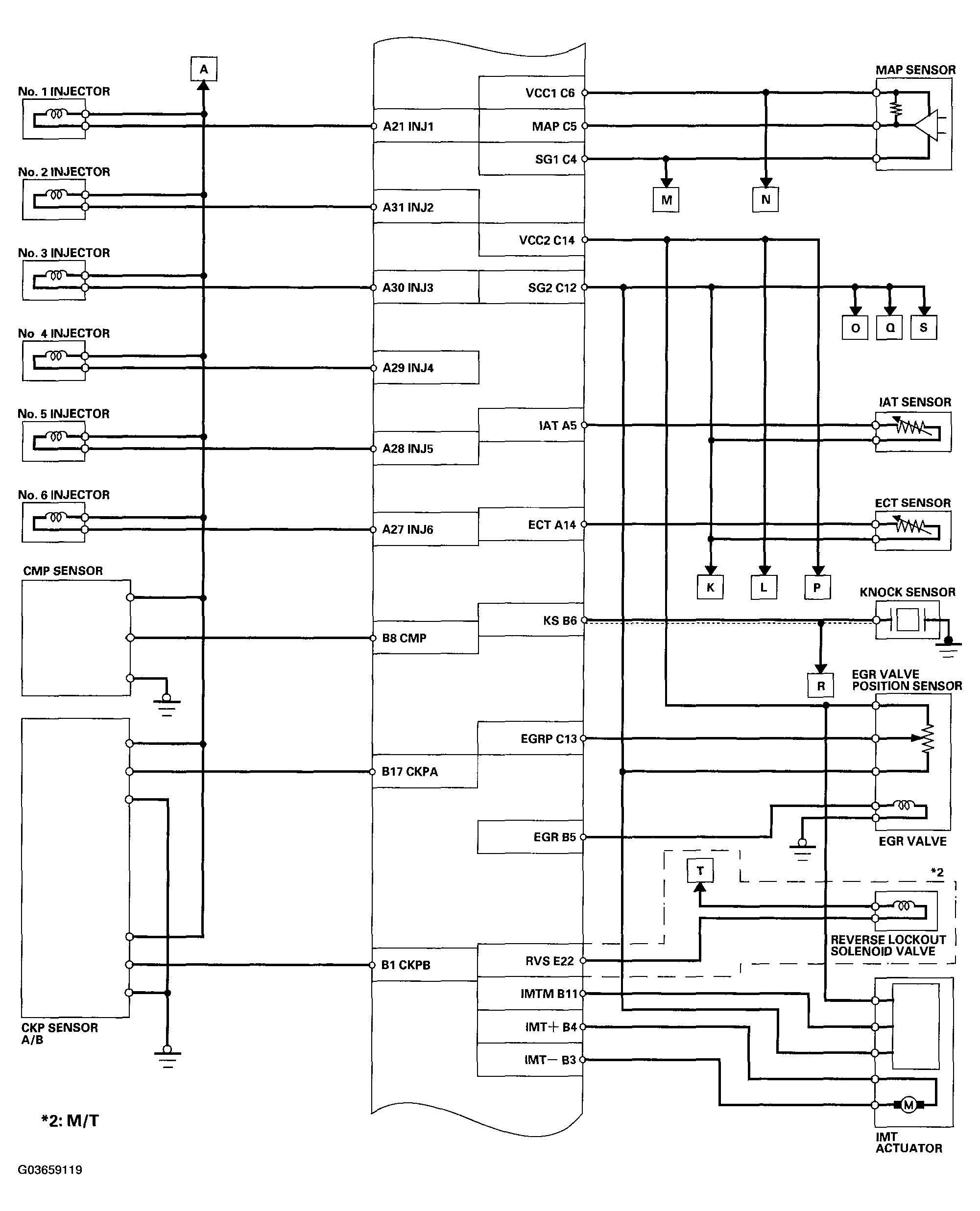

Fig 3: ECM/PCM Electrical Connections - 2006 Models Wiring Diagram (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

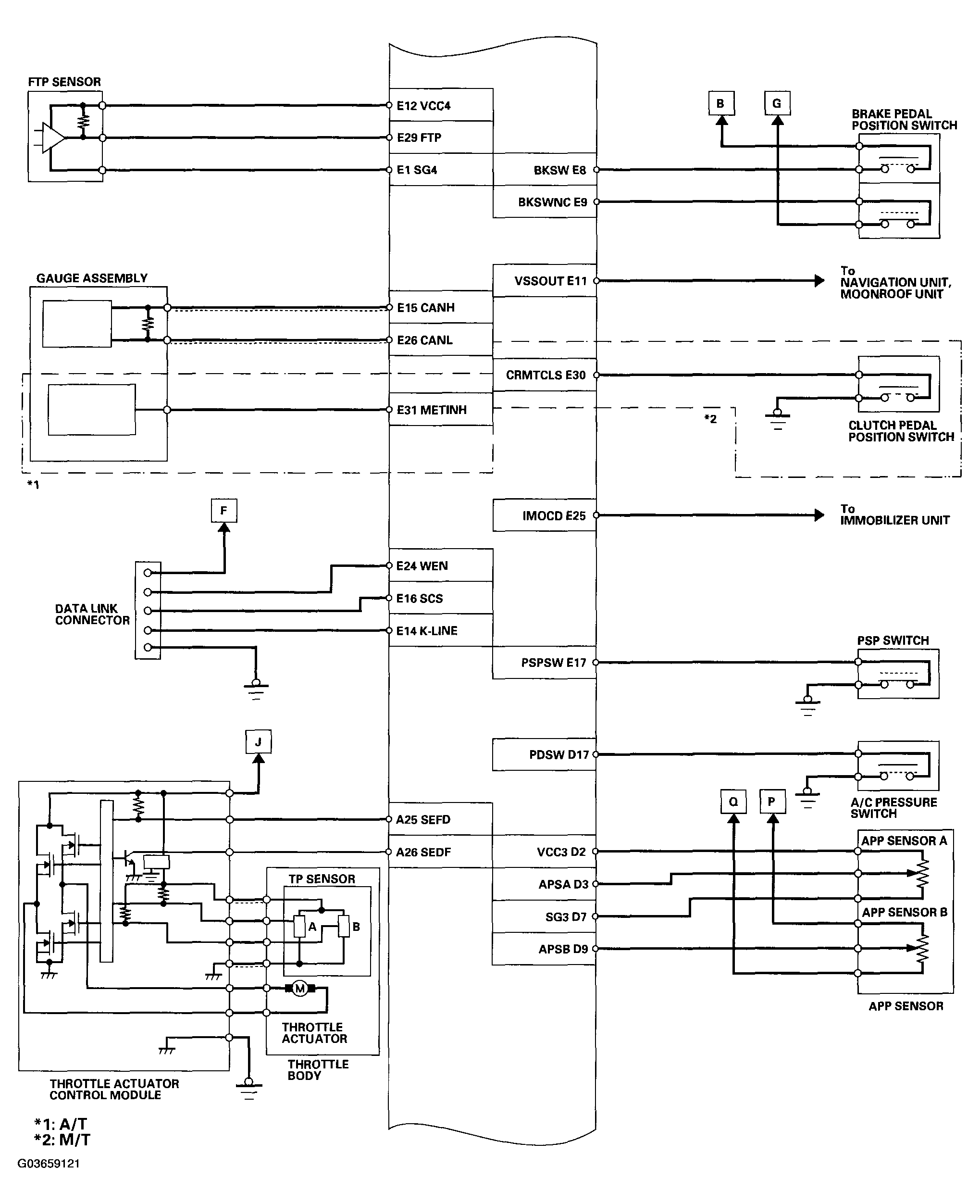

Fig 4: ECM/PCM Electrical Connections - 2006 Models Wiring Diagram (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

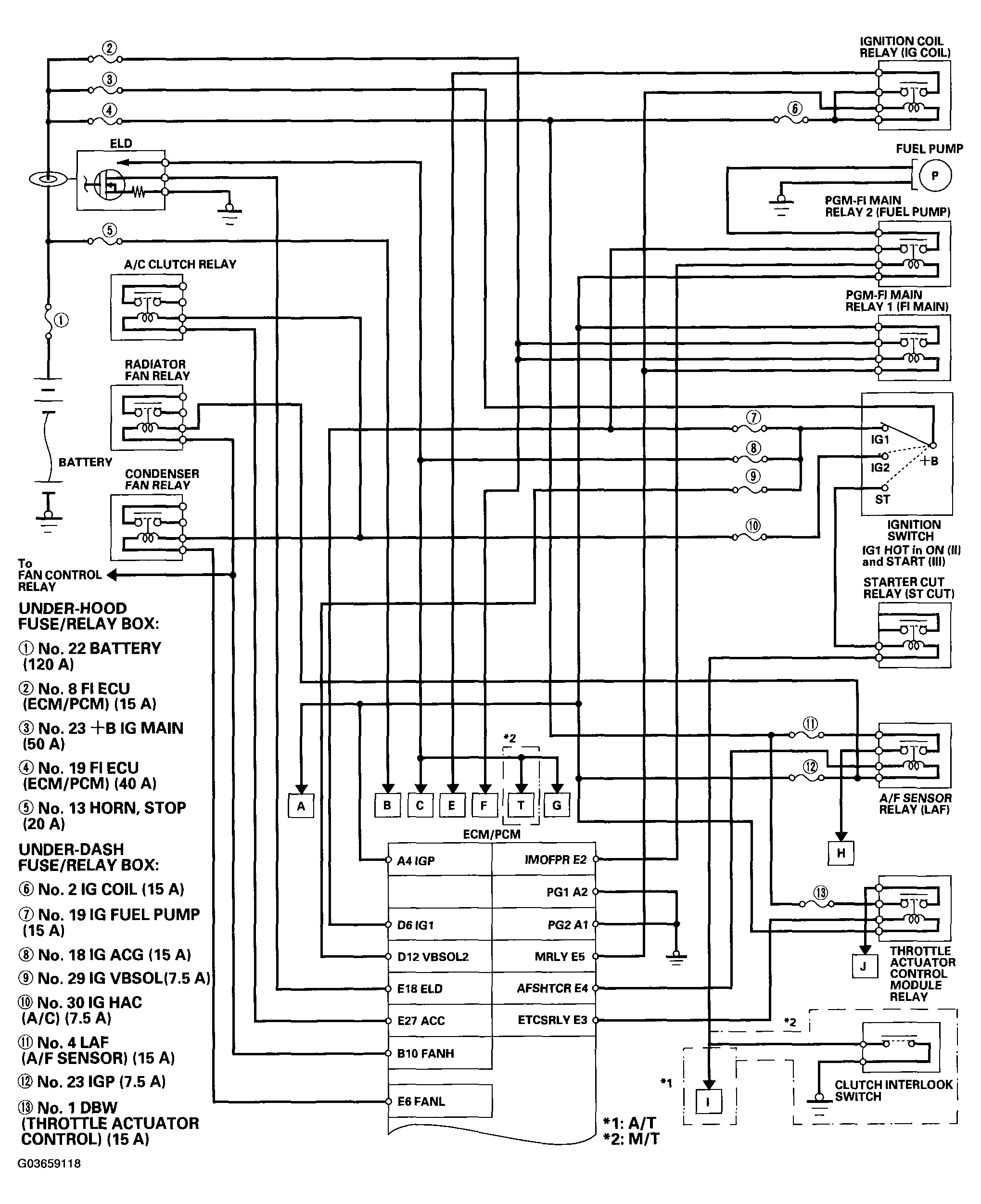

Fig 5: ECM/PCM Electrical Connections - 2006 Models Wiring Diagram (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
