EVAP Canister Replacement

  1. Remove the EVAP canister cover (A).

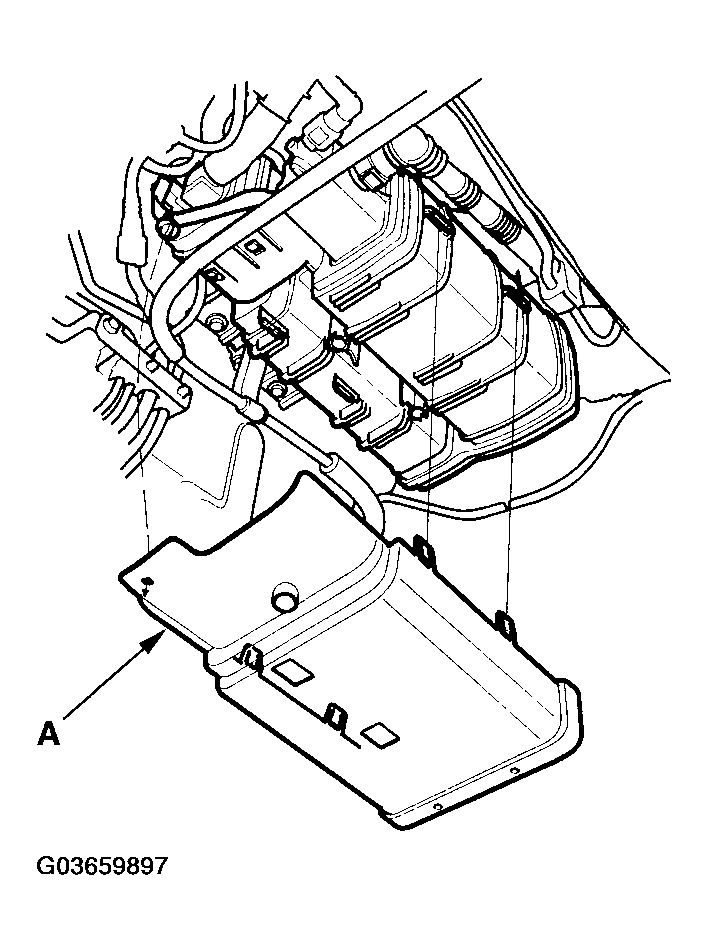

    Fig 1: Removing EVAP Canister Cover
    G03659897Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

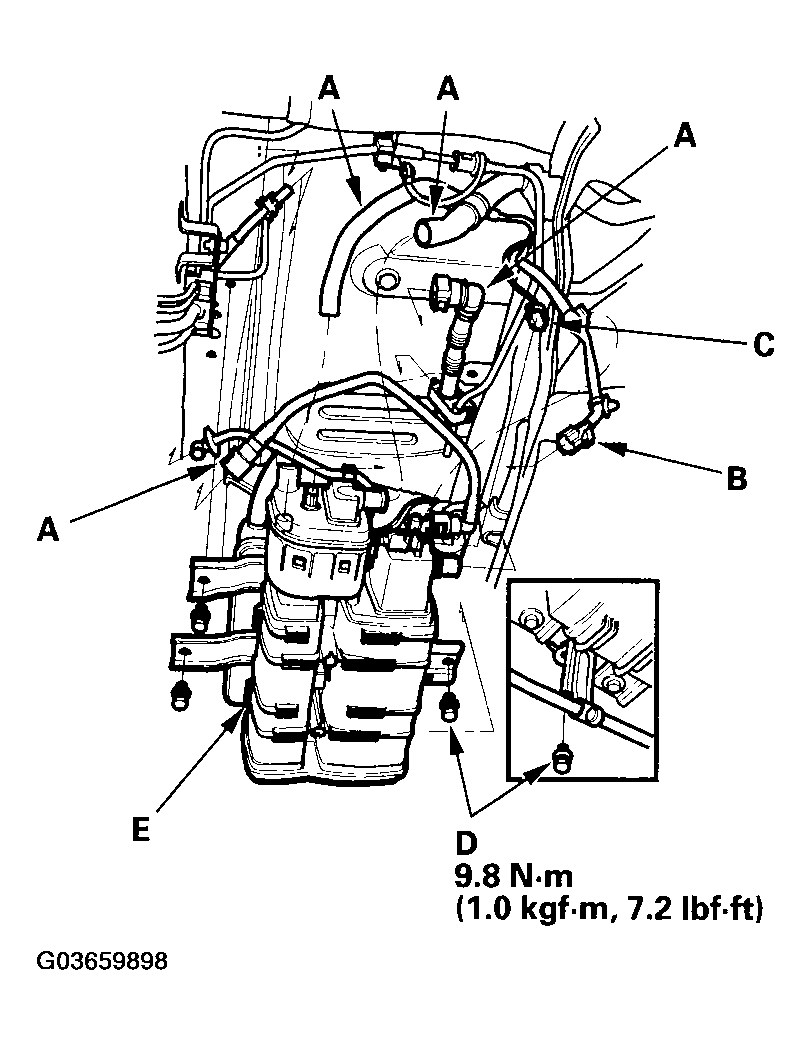

    Fig 2: Removing Hoses
    G03659898Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (D).
  4. Remove the EVAP canister assembly (E).
  5. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.

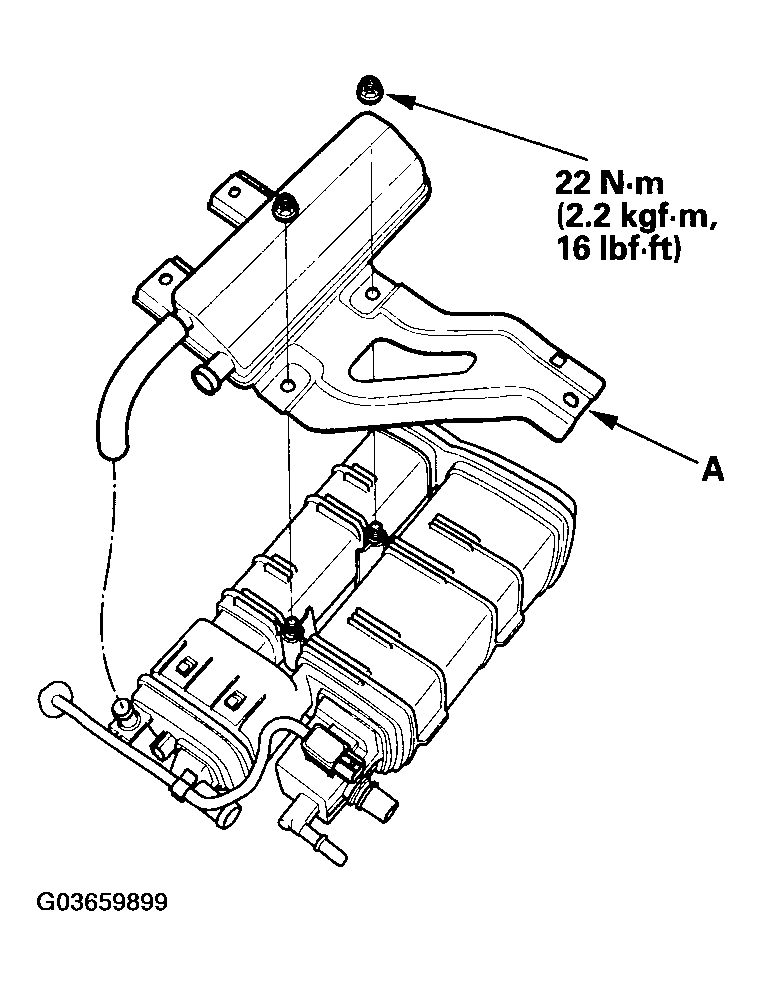

    Fig 3: Removing Bolts
    G03659899Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the canister in the reverse order of removal.
