Acura
>>
2005
>>
TL Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless/Power Door Locks/Security System
>>
Circuit Diagram
Circuit Diagram

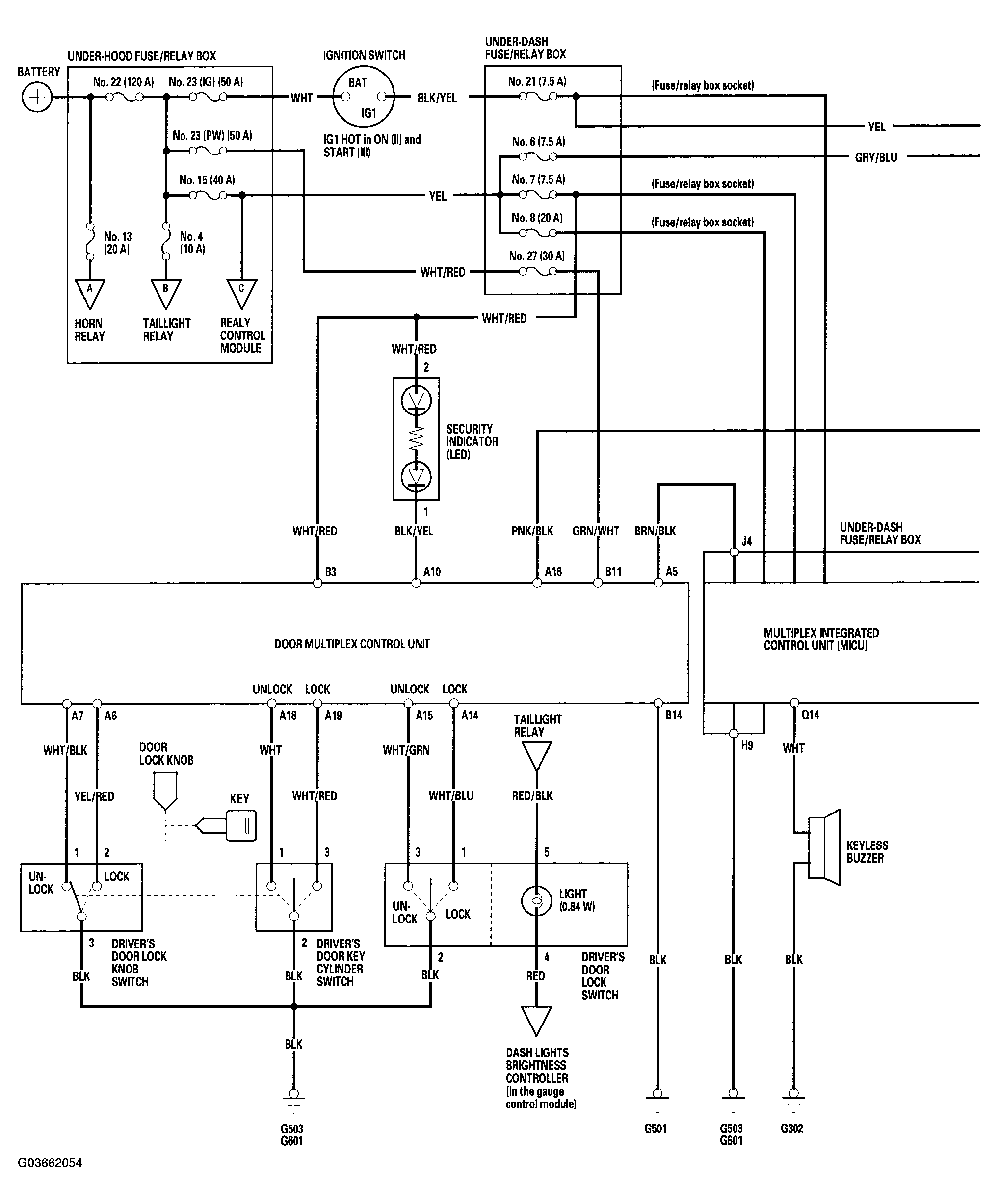

Fig 1: Identifying Keyless/Power Door Locks/Security System Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

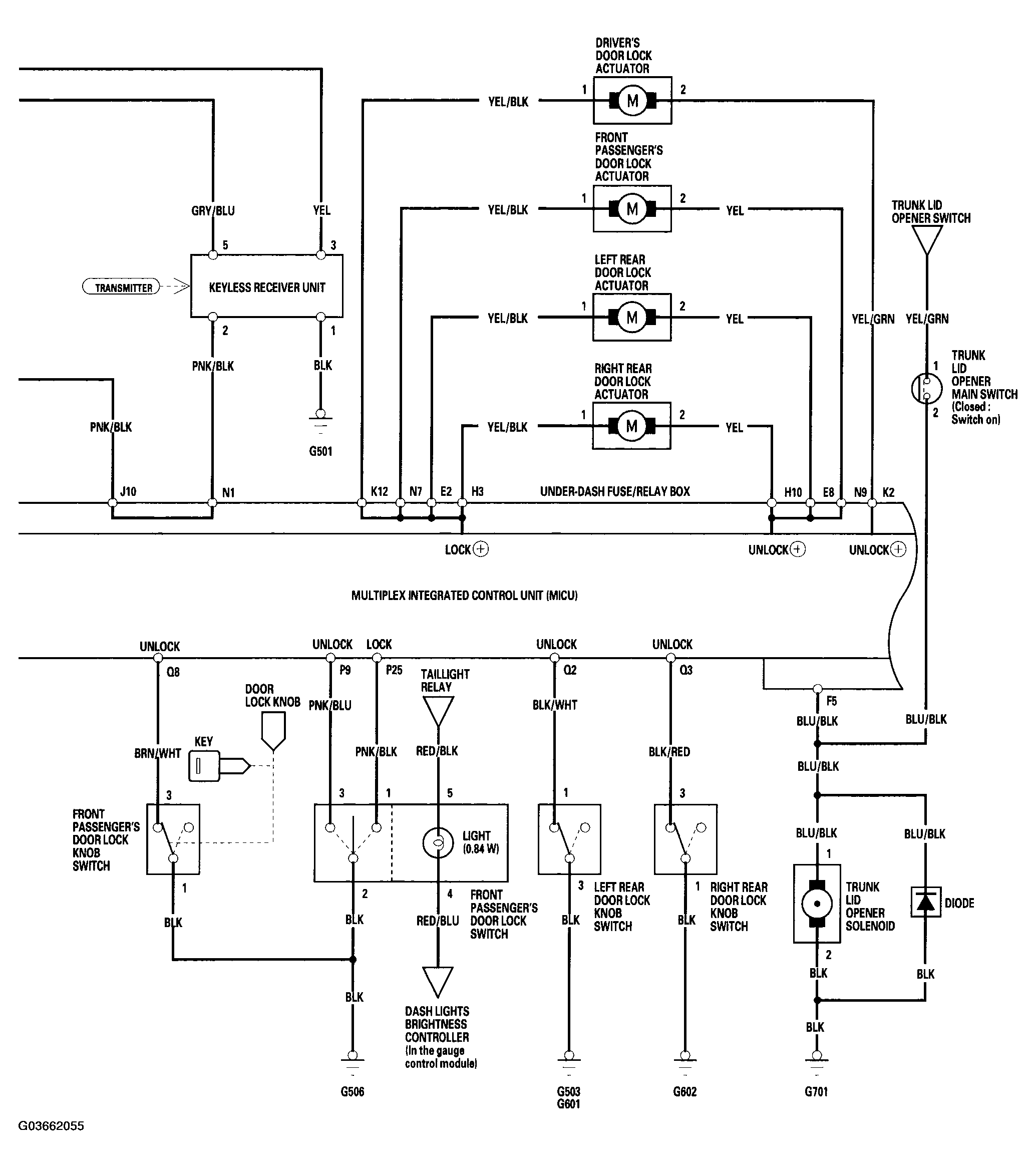

Fig 2: Identifying Keyless/Power Door Locks/Security System Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

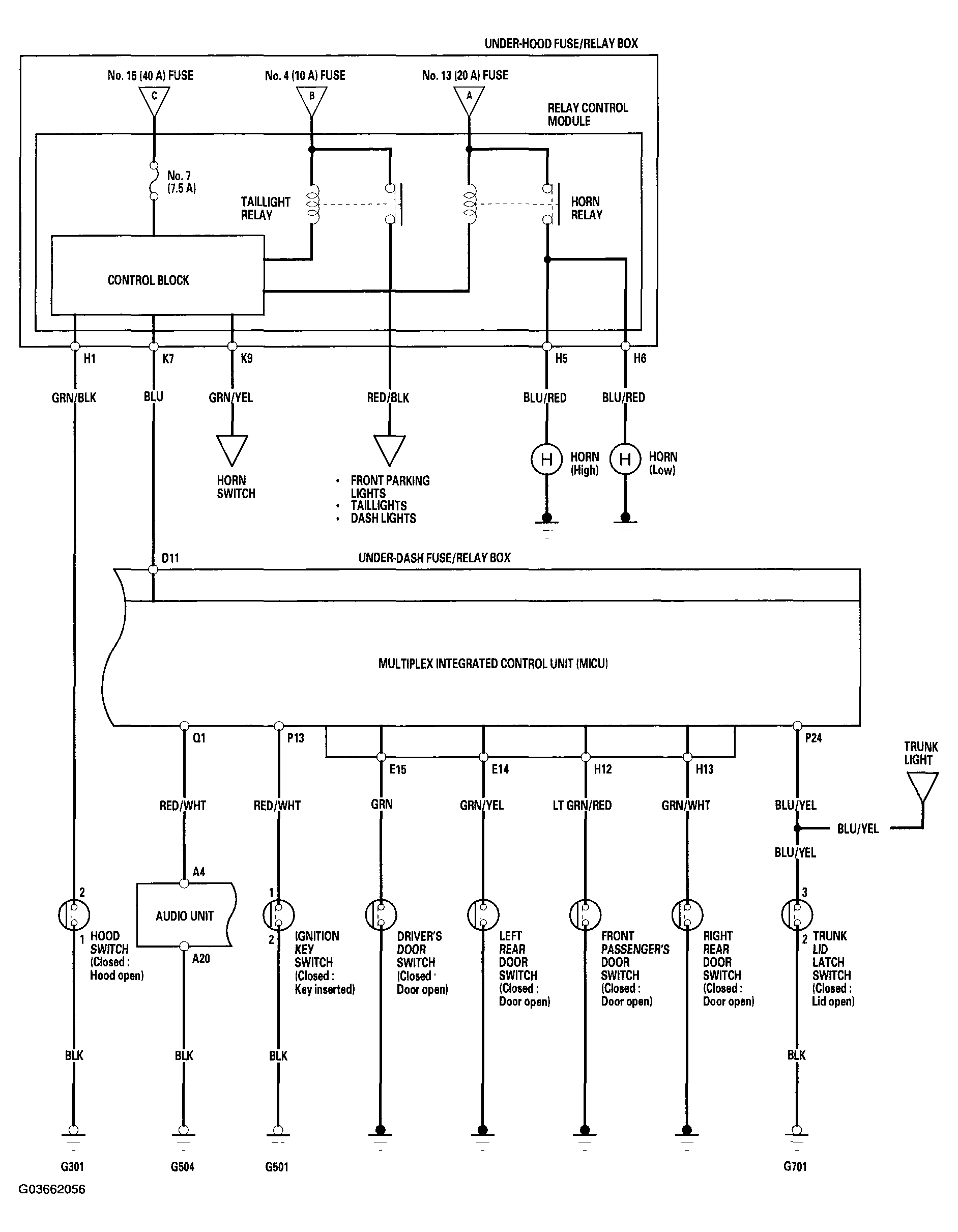

Fig 3: Identifying Keyless/Power Door Locks/Security System Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
