Speaker Test

The audio unit has a speaker self-diagnostic function. To run the self-diagnostic function, do the following:

1. Turn the ignition switch ACC (I).
2. Press and hold the "Preset 1, Preset 3 and Power" buttons at the same time.
   NOTE:

   • If the audio unit enters the self-diagnostic mode, the following will occur.
     • Radio tunes to FM 97.9 MHz
     • DIAGNOSTIC (DIAG) is displayed.
     • FM 97.9 MHz is broadcast through the selected speaker.
     • The buttons that operate are Volume Up/Down, Seek +/-, and radio remote switch input for CH +/- and Volume Up/Down.
   • If the audio unit does not enter the self-diagnostic function, turn the ignition switch OFF and repeat step  1 and step  2.

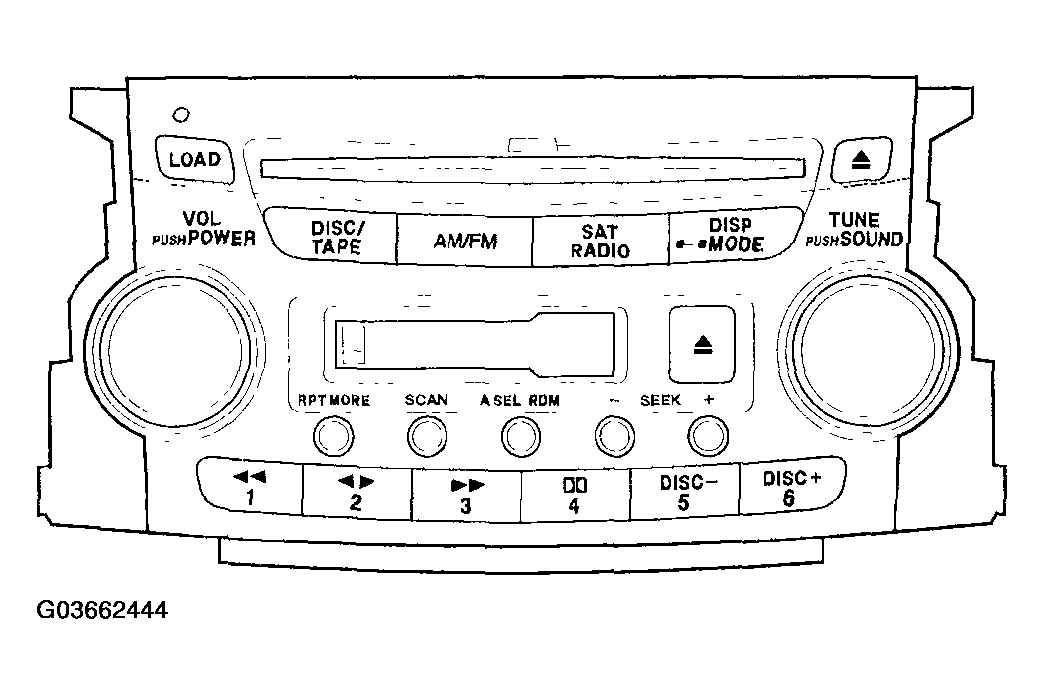

   Fig 1: Identifying Audio Unit

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Cycle up or down with the radio remote switch "CH +/-" button or the radio unit "Seek +/-" button and check each speaker.
   Fig 2: Identifying Radio Remote Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If any speaker does not sound, check for an open in the wire between the audio unit and its speaker. If the wire harness is OK, replace its speaker (see SPEAKER REPLACEMENT ).
5. To exit the self-diagnostic function, turn the ignition switch OFF.
