Speaker Replacement: Tweeter

  1. Carefully pry the tweeter grille (A) out from the dashboard. Be careful not to damage the tweeter grille and the dashboard.

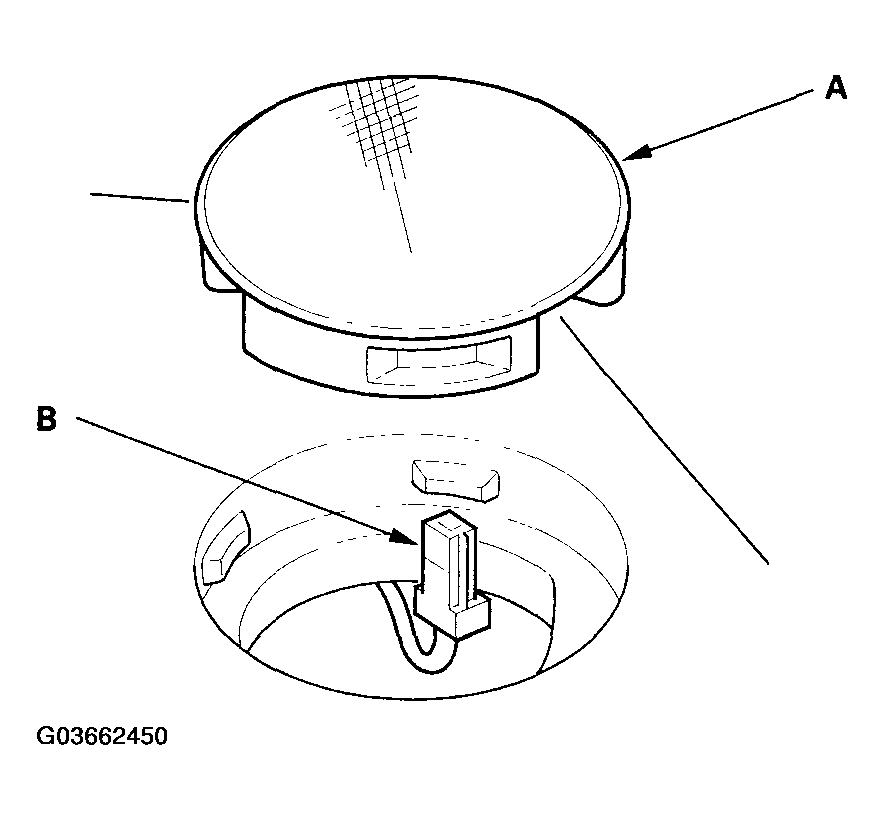

    Fig 1: Prying Tweeter Grille Out From Dashboard
    G03662450Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the 2P connector (B) from the tweeter.
  3. Remove the tweeter speaker from the speaker grille.

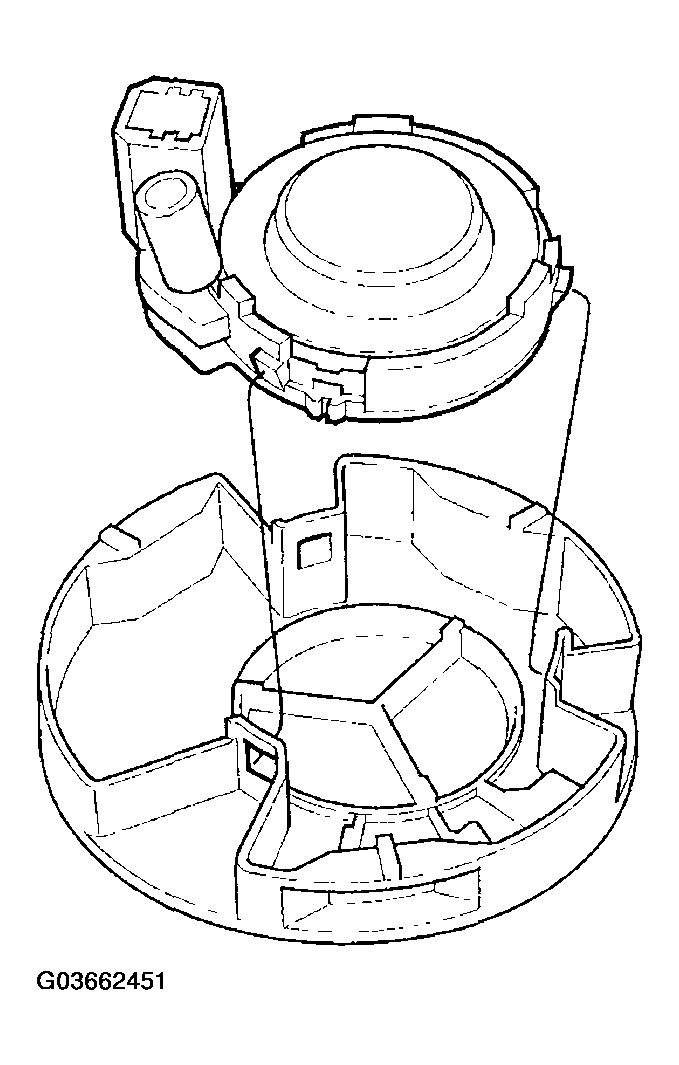

    Fig 2: Removing Tweeter Speaker From Speaker Grille
    G03662451Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal.
