CMP Pulse Plate A Replacement

  1. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  2. Hold the intake camshaft with an open-end wrench, then loosen the bolt.

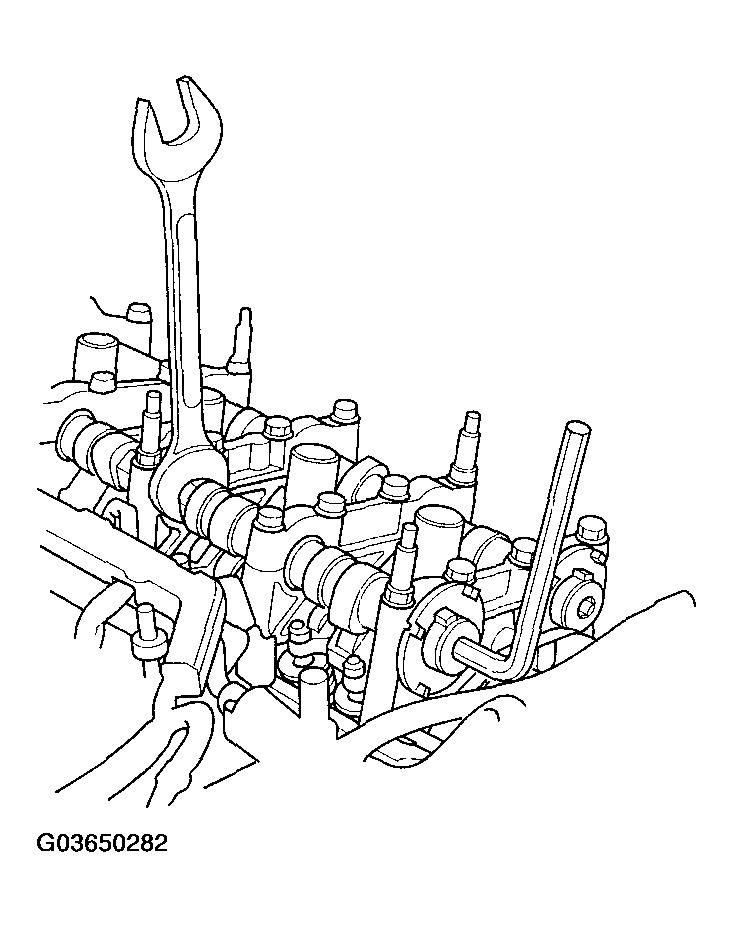

    Fig 1: Holding Intake Camshaft
    G03650282Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the camshaft position (CMP) pulse plate A.

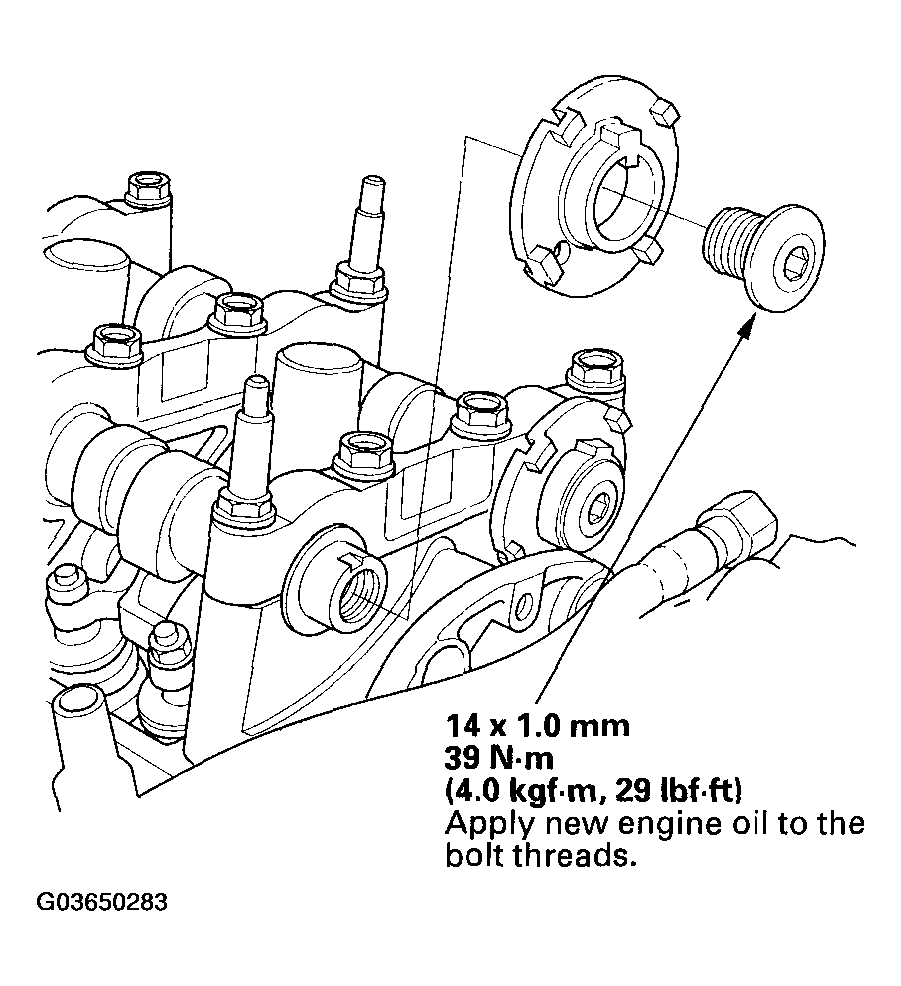

    Fig 2: Removing Camshaft Position (CMP) Pulse Plate And Torque Specifications
    G03650283Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the CMP pulse plate A in the reverse order of removal.
