Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor and condenser fan motor.

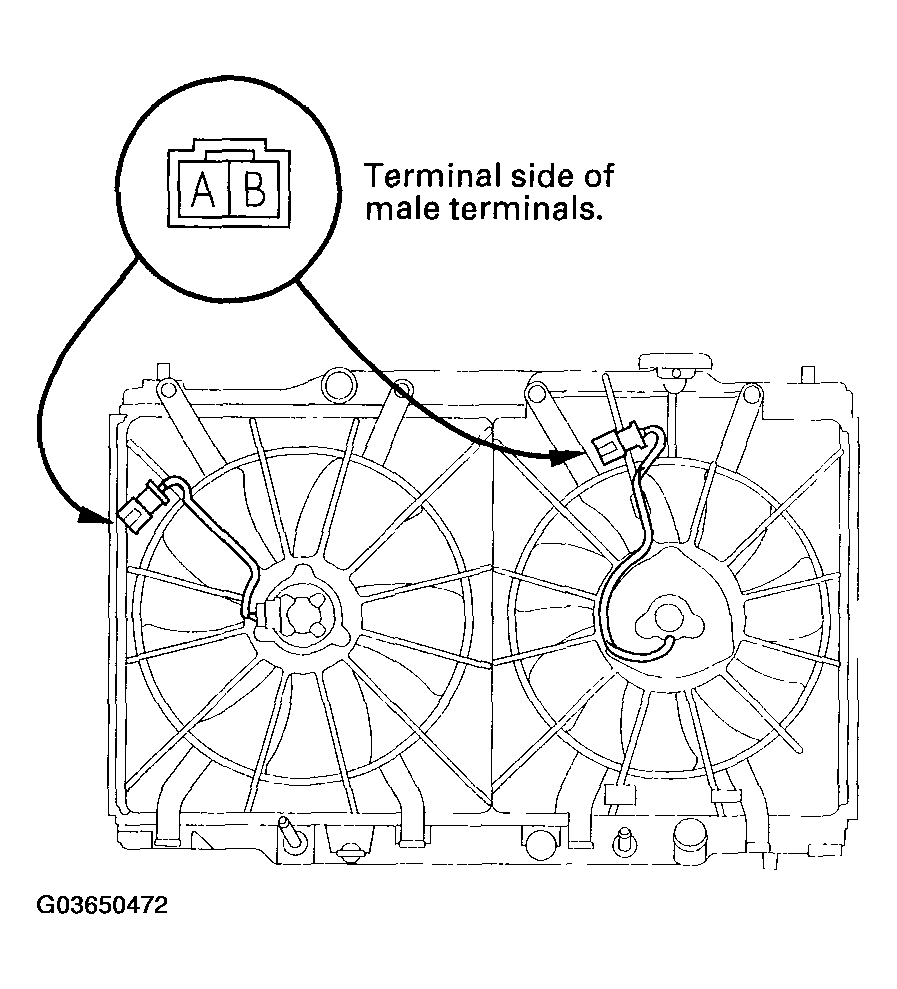

    Fig 1: Identifying 2P Connectors Of Radiator Fan Motor And Condenser Fan Motor
    G03650472Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test the motor by connecting battery power to the B terminal and ground to the A terminal.
  3. If the motor fails to run or does not run smoothly, replace it (see RADIATOR AND FAN REPLACEMENT  ).
