Coolant Check

  1. Look at the coolant level in the reserve tank. Make sure it is between the MAX mark (A) and MIN mark (B).

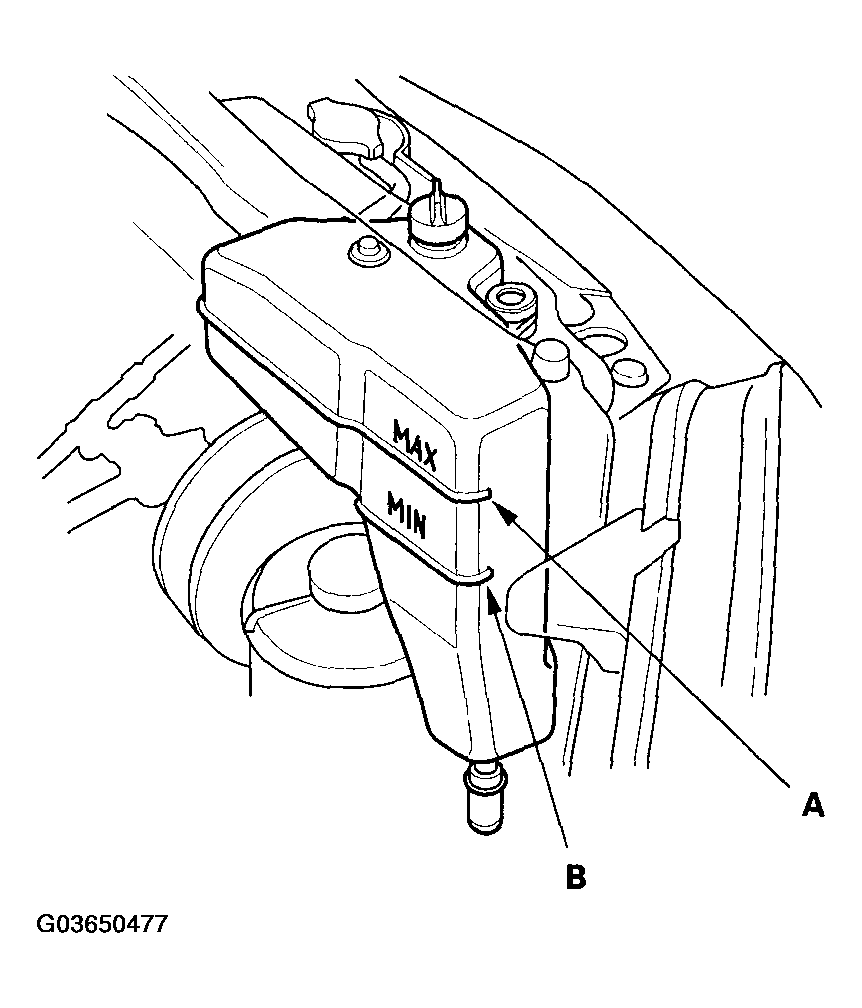

    Fig 1: Identifying Coolant Level In Reserve Tank
    G03650477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. If the coolant level in the reserve tank is at or below the MIN mark, add coolant to bring it up to the MAX mark, and inspect the cooling system for leaks.
