Acura
>>
2005
>>
RSX Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Circuit Diagram
Circuit Diagram

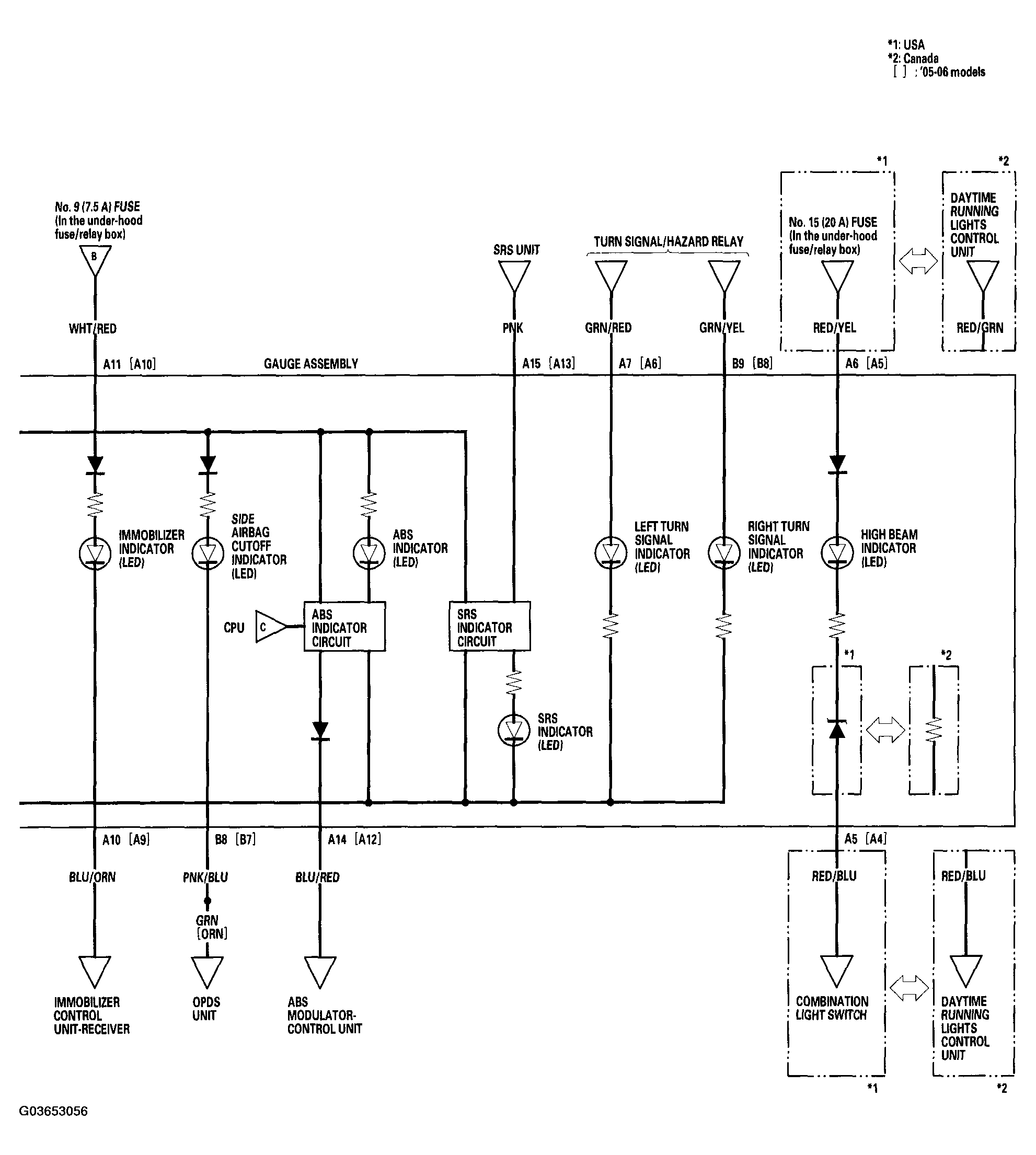

Fig 1: Circuit Diagram Gauges (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

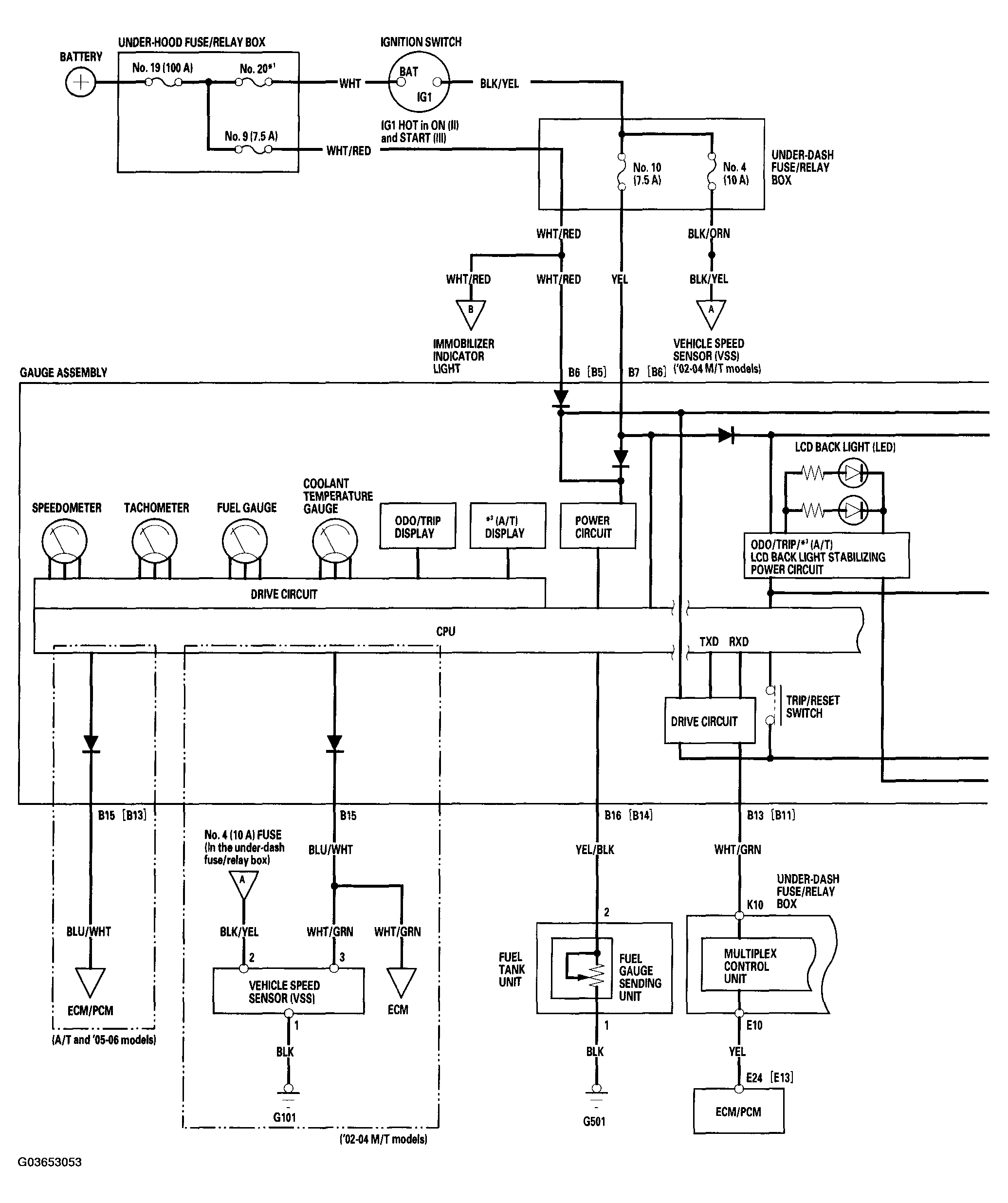

Fig 2: Circuit Diagram Gauges (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

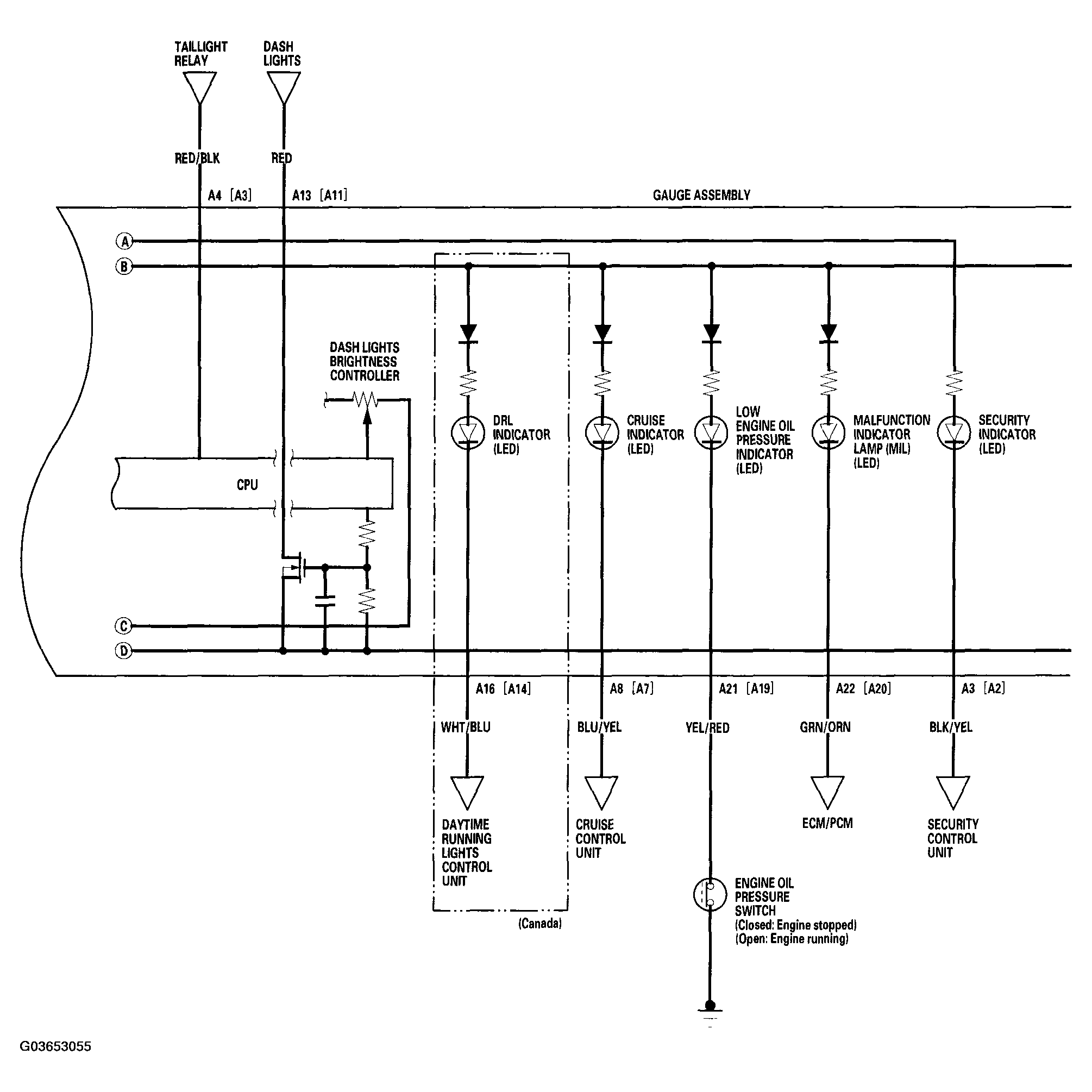

Fig 3: Circuit Diagram Gauges (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

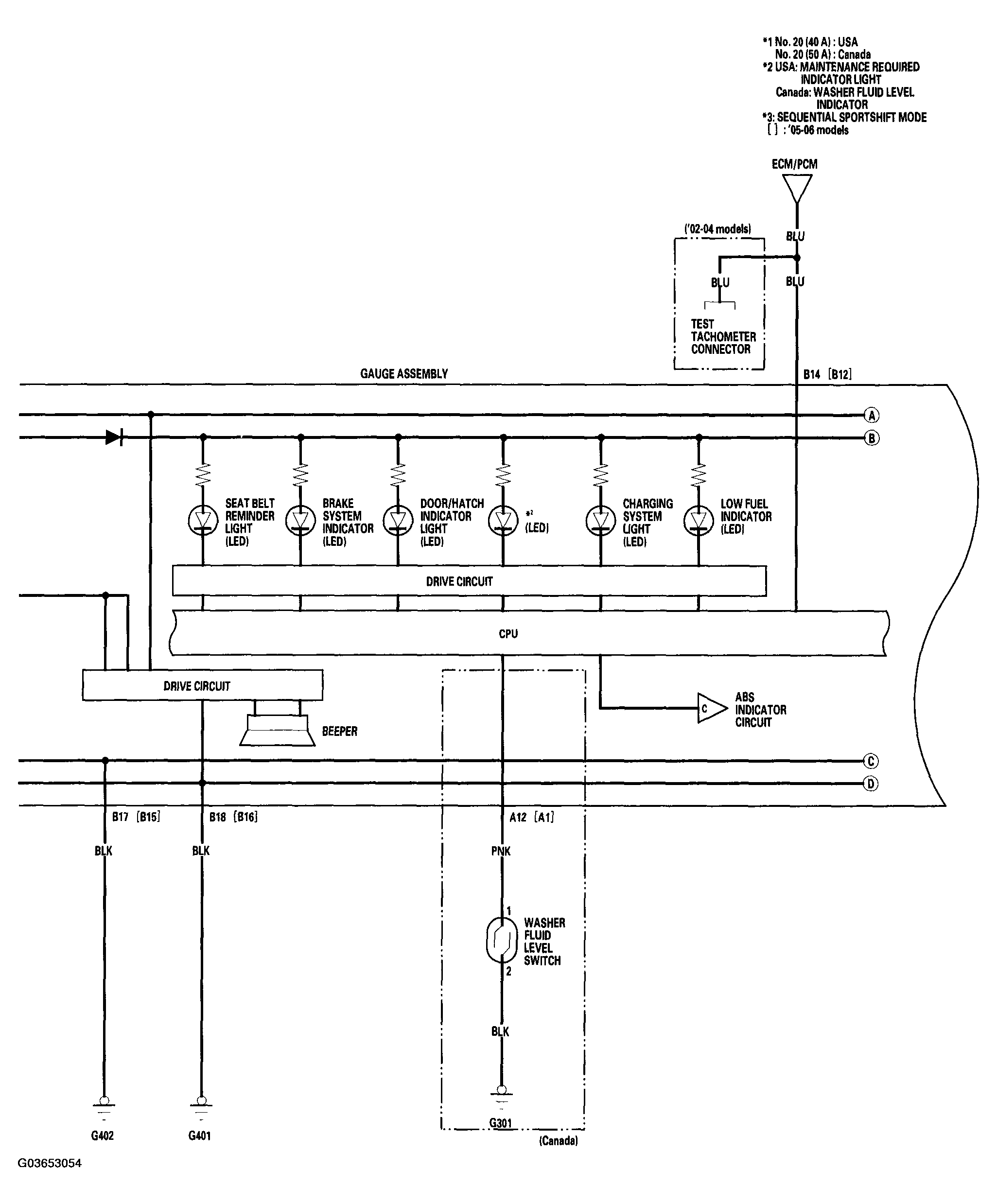

Fig 4: Circuit Diagram Gauges (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
