Flywheel Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Install the special tool.

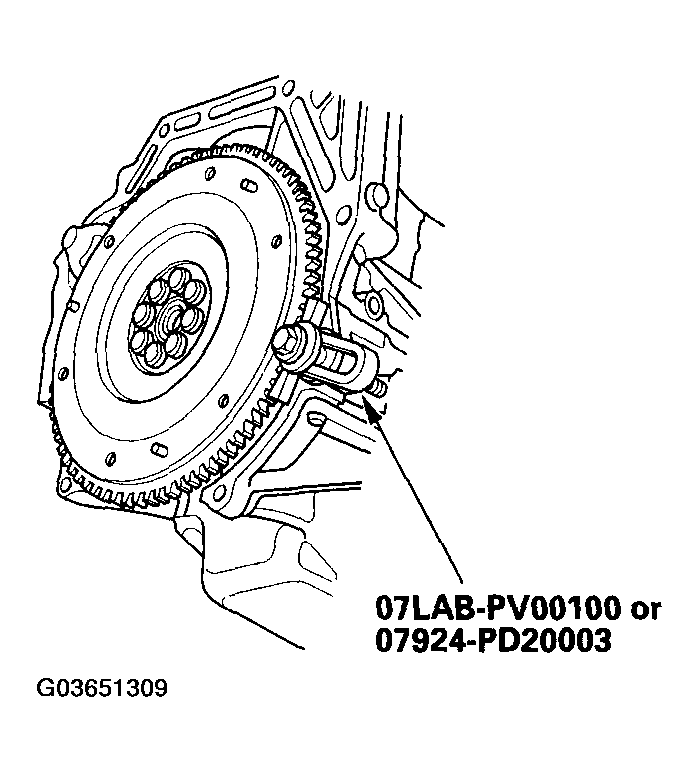

    Fig 1: Installing Special Tool
    G03651309Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the flywheel mounting bolts in a crisscross pattern in several steps, then remove the flywheel.
  3. Install the flywheel on the crankshaft, and install the mounting bolts, finger-tight.
  4. Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps.

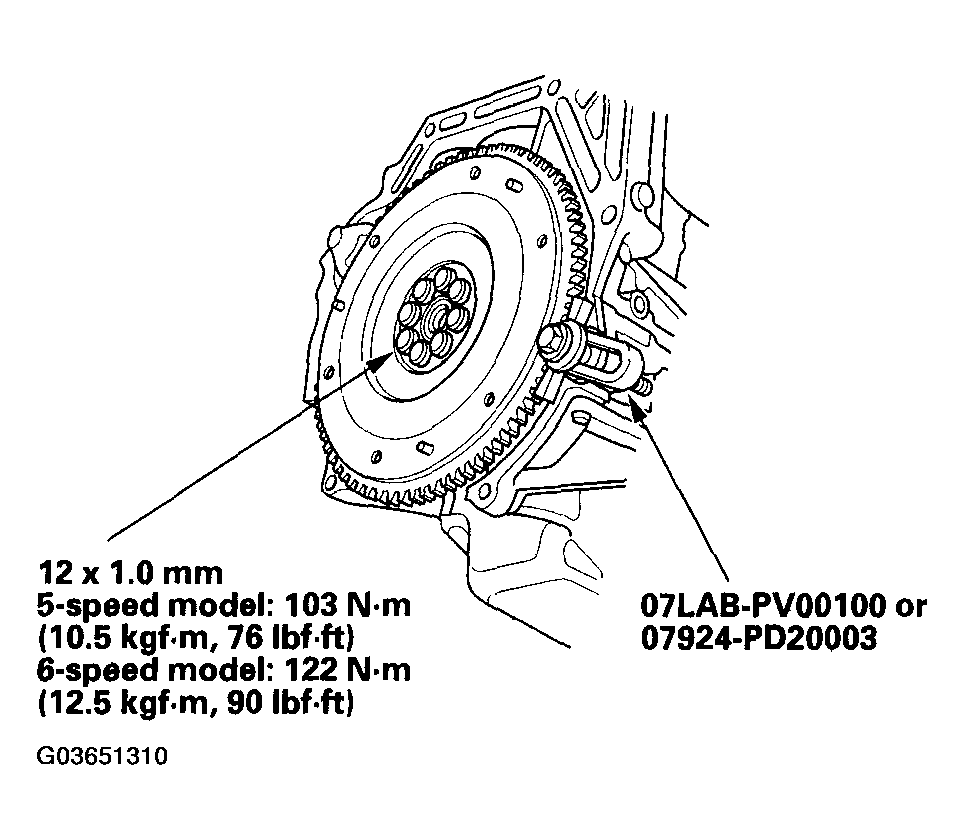

    Fig 2: Installing Flywheel On Crankshaft And Torque Specifications
    G03651310Courtesy of AMERICAN HONDA MOTOR CO., INC.
