Component Location Index
>>
K20A3 engine-2005-2006 models
K20A3 engine-2005-2006 models

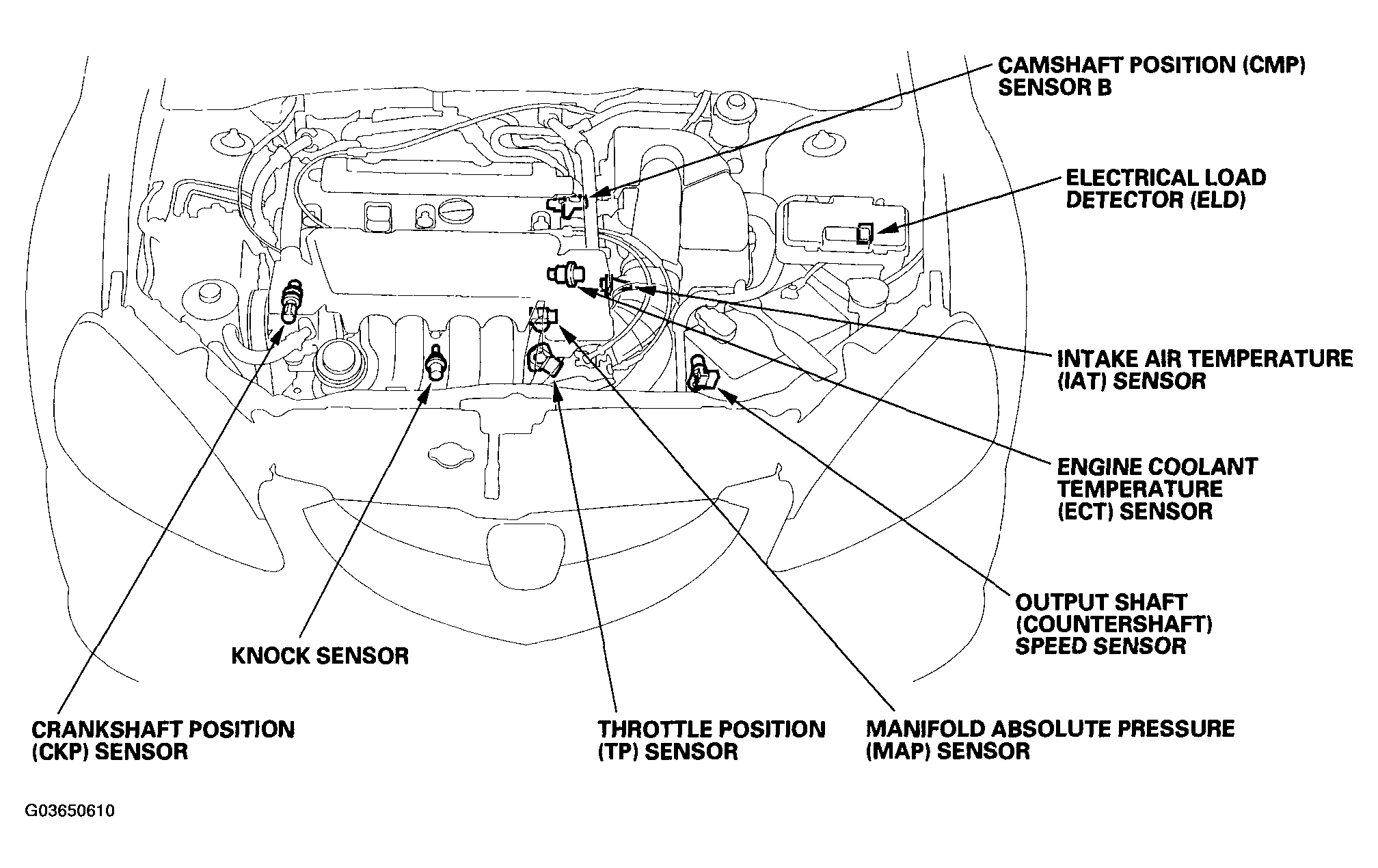

Fig 1: Identifying PGM - FI System Component Location Index (K20A3 Engine-2005-2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

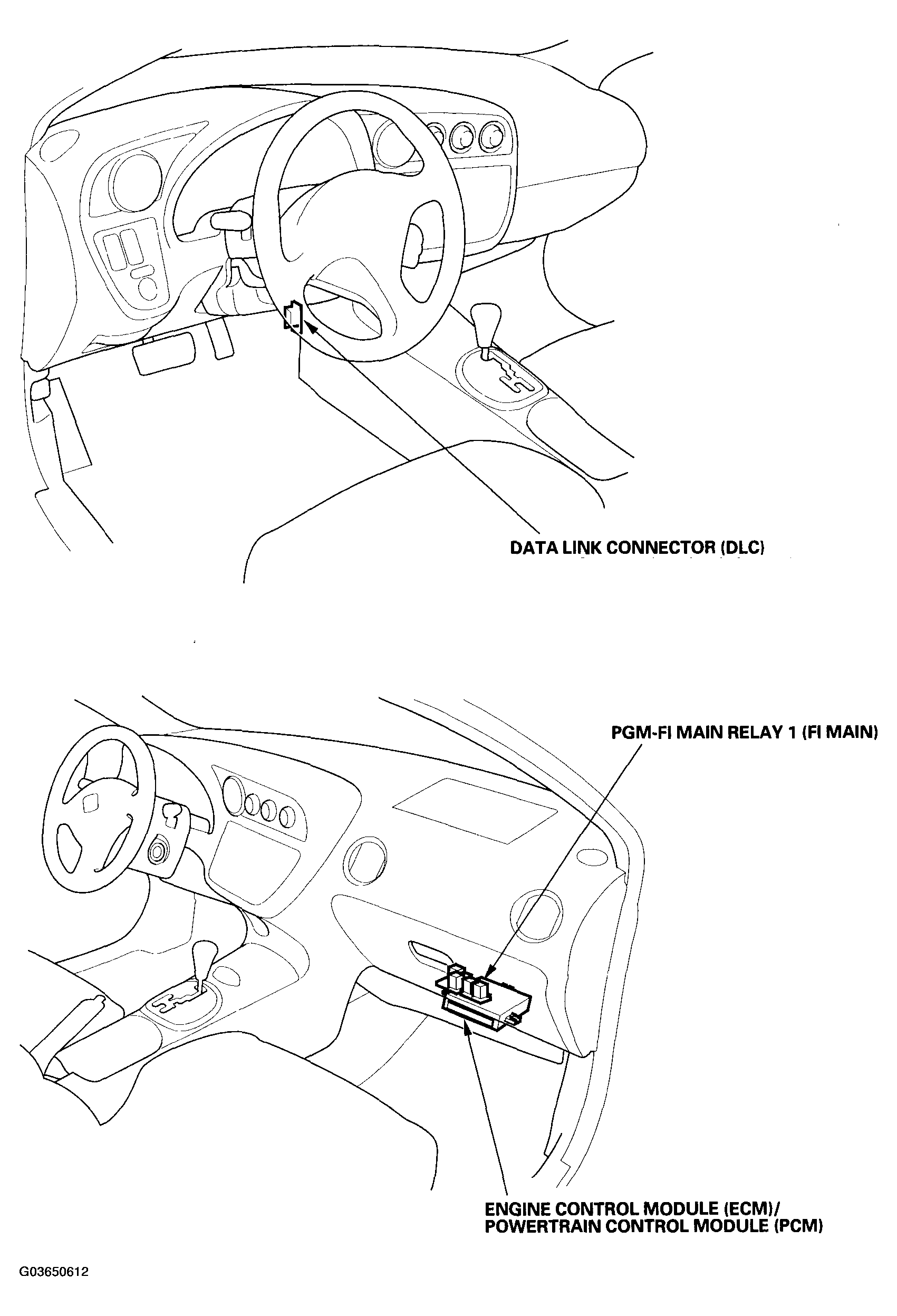

Fig 2: Identifying PGM - FI System Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.

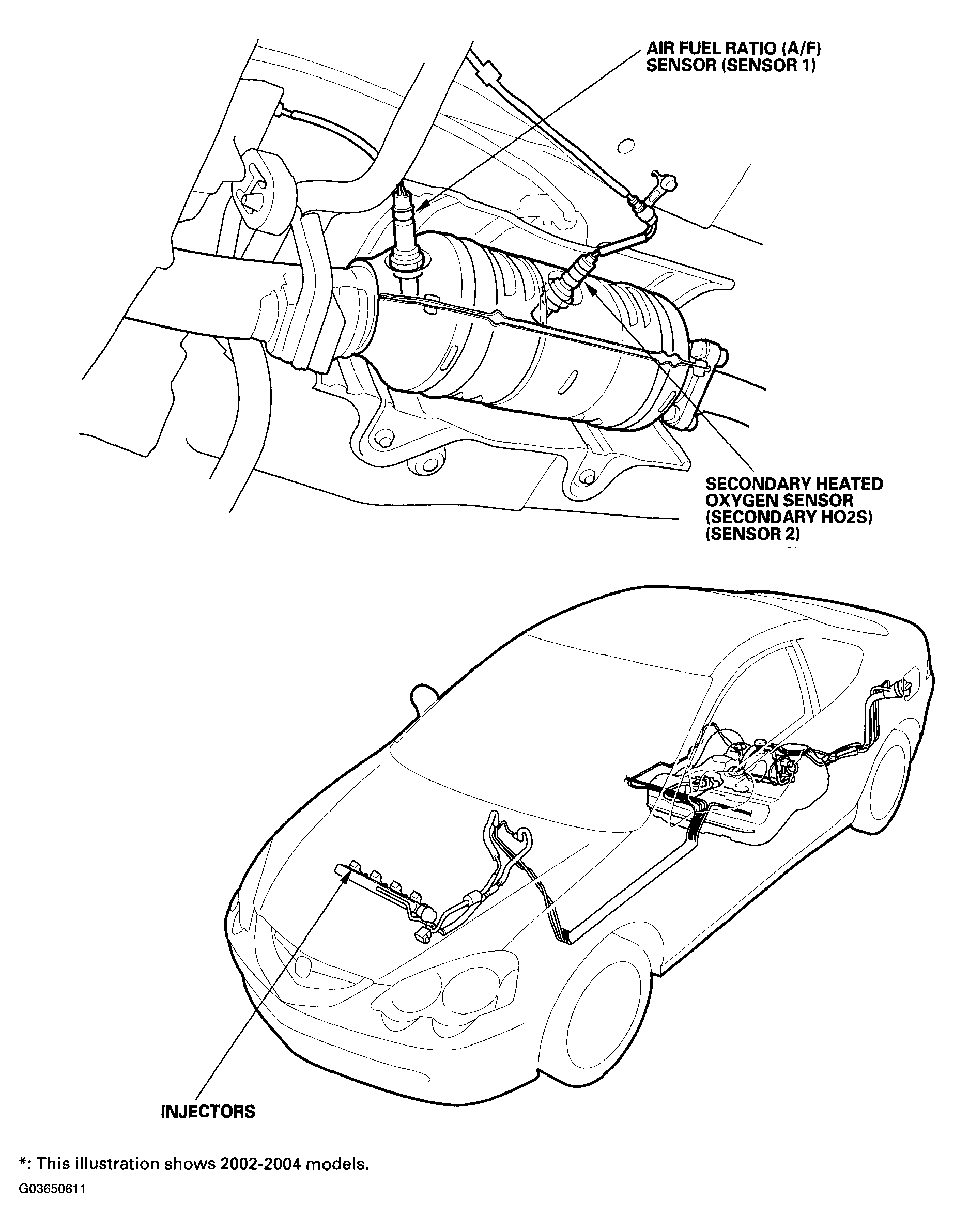

Fig 3: Locating PGM - FI System Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
