Window Antenna Test

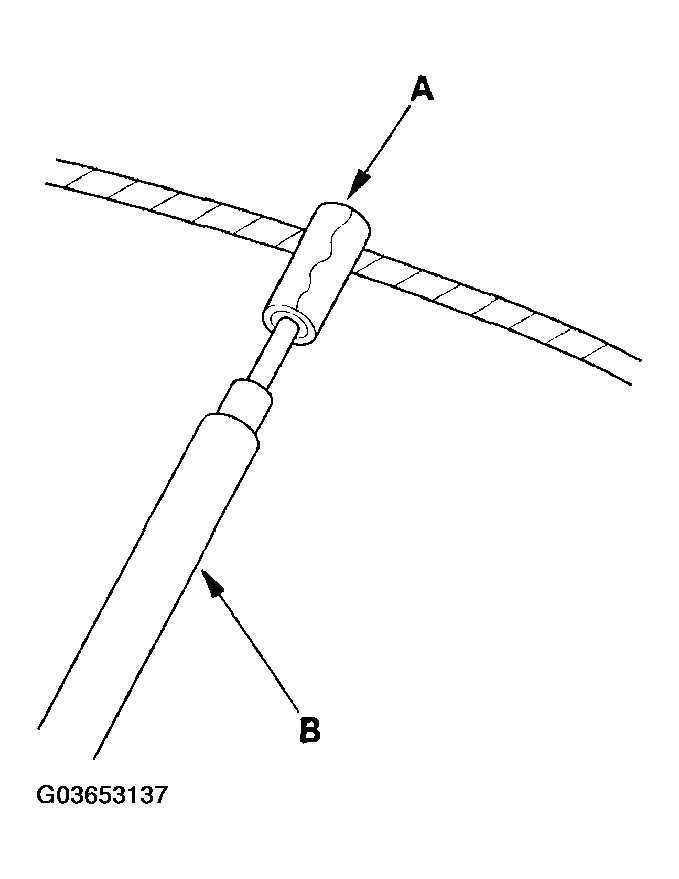

  1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown.
    Fig 1: Wrapping Aluminum Foil Around Tip Of Tester Probe
    G03653137Courtesy of AMERICAN HONDA MOTOR CO., INC.

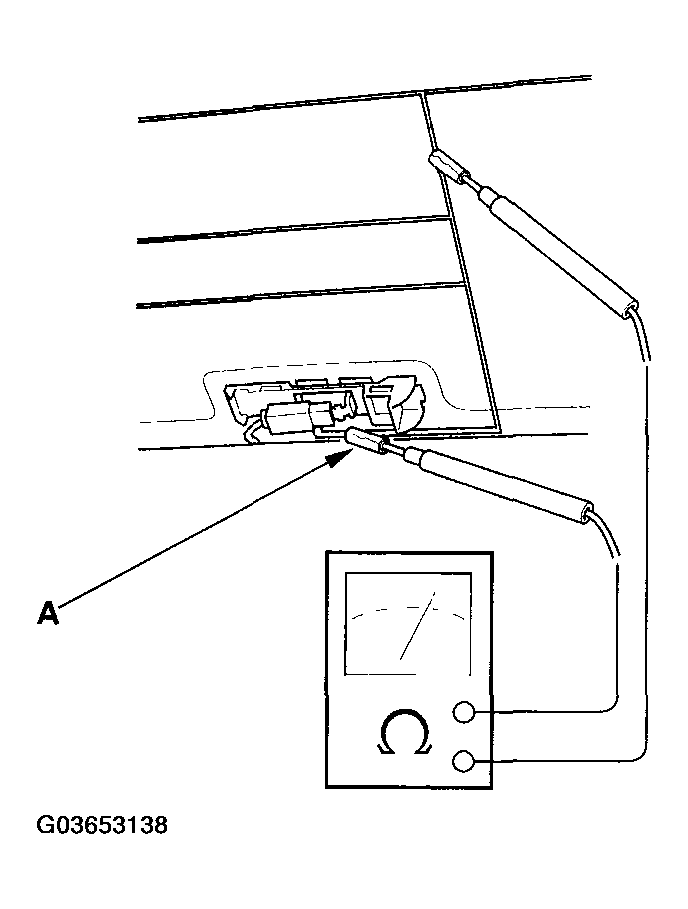

  2. Touch one tester probe to the window antenna terminal (A), and move the other tester probe along the antenna wires to check that continuity exists.
    Fig 2: Touching One Tester Probe To Window Antenna Terminal
    G03653138Courtesy of AMERICAN HONDA MOTOR CO., INC.
