Speaker Replacement: Tweeter
- Remove the tweeter speaker grille (A) and tweeter (B) as an assembly.

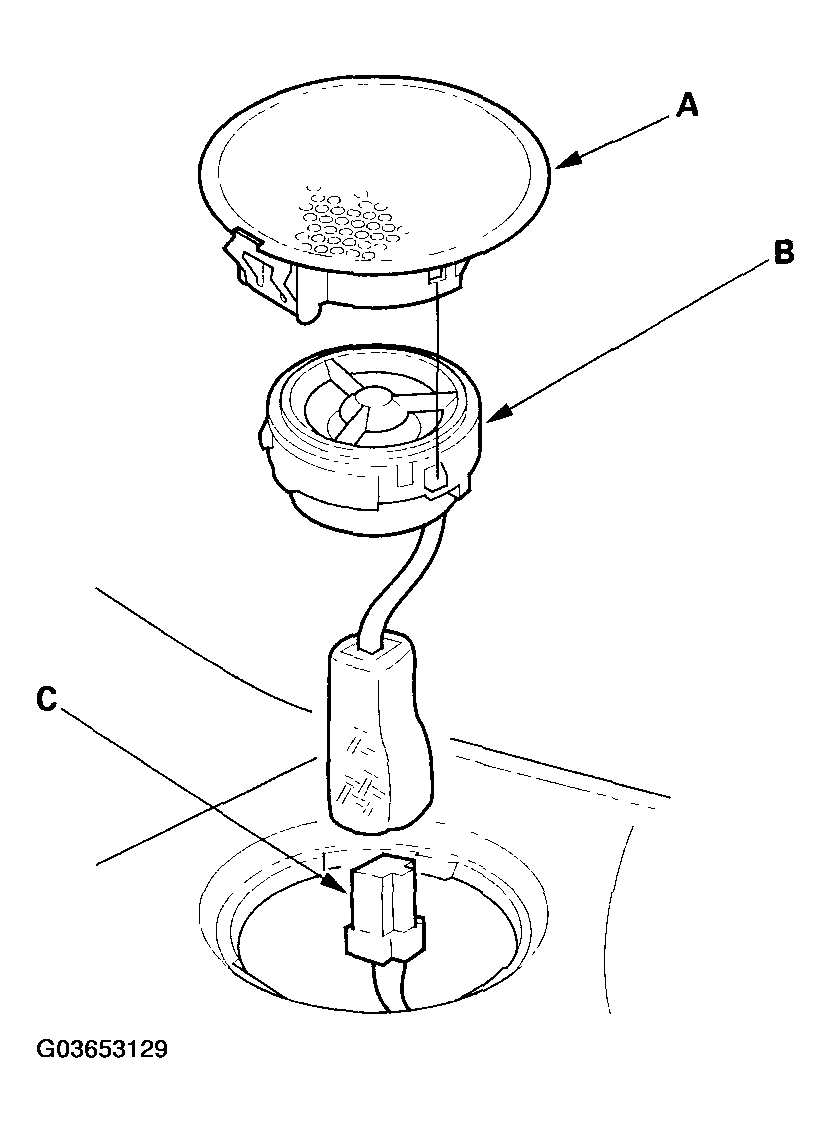

With BOSE Sound System:
Courtesy of AMERICAN HONDA MOTOR CO., INC.

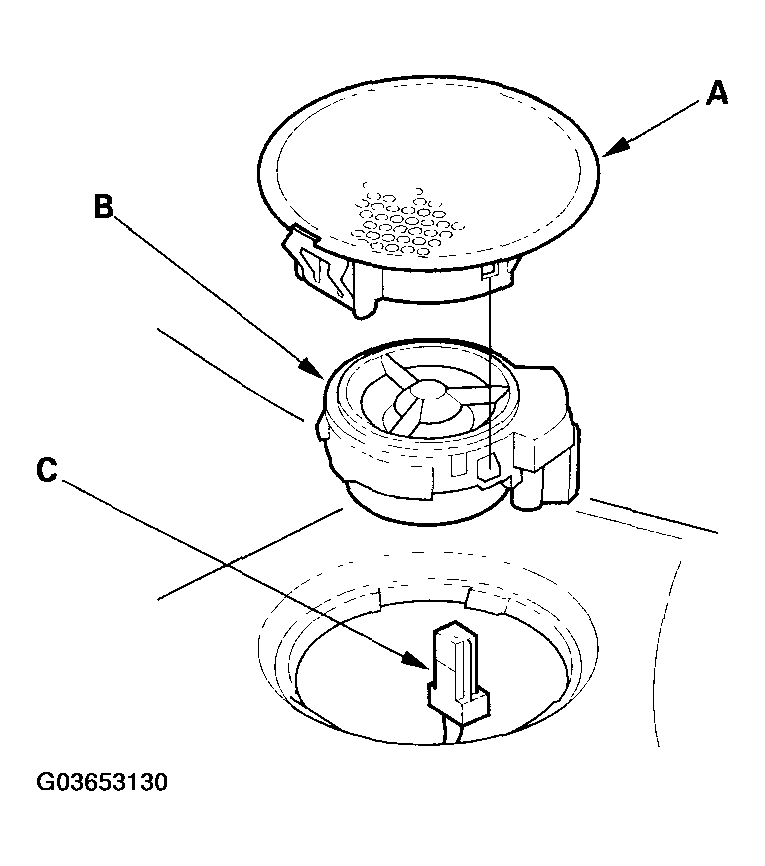

Without BOSE Sound System:
- Disconnect the 2P connector (C) from the tweeter.
- Remove the tweeter speaker grille from the tweeter.
